基于SPAD值的滴灌冬小麦氮肥推荐模型分析

doi:10.6048/j.issn.1001-4330.2024.10.004

新疆农业科学 ›› 2024, Vol. 61 ›› Issue (10): 2366-2373.DOI: 10.6048/j.issn.1001-4330.2024.10.004

• 作物遗传育种·种质资源·分子遗传学·耕作栽培·生理生化 • 上一篇下一篇

基于SPAD值的滴灌冬小麦氮肥推荐模型分析

孙法福¹(), 赖宁², 耿庆龙², 李永福², 吕彩霞², 信会男², 李娜², 陈署晃²()

1.新疆农业大学资源与环境学院,乌鲁木齐 830052
2.新疆农业科学院土壤肥料与农业节水研究所/新疆农业科学院农业遥感中心,乌鲁木齐 830091

收稿日期:2024-03-22 出版日期:2024-10-20 发布日期:2024-11-07
通信作者: 陈署晃(1973-),女,湖南人,研究员,硕士,研究方向为土壤肥料与农业信息技术,(E-mail)chensh66@163.com
作者简介:孙法福(1997-),男,山东人,硕士研究生,研究方向为农业资源环境,(E-mail)18253289263@163.com
基金资助:
农业科技创新稳定支持专项(xjnkywdzc-2022002);新疆维吾尔自治区重大科技专项项目(2022A02011-2);新疆农业科学院自主培育专项(xjnkycxzx-2022004)

Study on recommended nitrogen fertilizer quota for winter wheat under drip irrigation based on SPAD value

SUN Fafu¹(), LAI Ning², GENG Qinglong², LI Yongfu², LYU Caixia², XIN Huinan², LI Na², CHEN Shuhuang²()

1. College of Resources and Environmental Sciences, Xinjiang Agricultural University, Urumqi 830052, China
2. Research Institute of Soil, Fertilizer and Agricultural Water Conservation/Agricultural Remote Sensing Center, Xinjiang Academy of Agricultural Sciences,Urumqi 830091,China

Received:2024-03-22 Published:2024-10-20 Online:2024-11-07
Correspondence author: CHEN Shuhuang(1973 - ), female,from Hunan,Doctor,research direction: soil fertilizer and agricultural information technology, (E-mail) chensh66@163.com
Supported by:
Agricultural Science and Technology Innovation and Stability Support Project(xjnkywdzc-2022002);Major Science and Technology Special Project of Xinjiang Uygur Autonomous Region(2022A02011-2);Independent Cultivation Project of Xinjiang Academy of Agricultural Sciences(xjnkycxzx-2022004)

摘要/Abstract

摘要：

【目的】 分析监测滴灌冬小麦关键生育期内氮素营养状况实时动态,为氮肥科学合理施用提供参考。【方法】 利用叶绿素仪SPAD-502获取不同氮梯度滴灌冬小麦拔节期、孕穗期、扬花期、灌浆期和乳熟期叶片SPAD值,分析冬小麦叶片SPAD值、施氮量和产量三者之间的关系,建立基于SPAD值的冬小麦各关键生育期氮肥推荐模型。【结果】 滴灌冬小麦叶片SPAD值从拔节期至孕穗期缓慢下降,从孕穗到灌浆期均快速增大,进入灌浆期后开始减小,除乳熟期外各生育期不同氮处理间SPAD值差异显著;拔节期、孕穗期、扬花期和灌浆期叶片SPAD值与施氮量之间呈极显著线性相关,相关系数在0.826以上;产量和施氮量为二次函数关系,关系表达式为Y = -0.034 5X²+19.494X+6 035,最高产量8 789 kg/hm²,对应的施氮量为282.52 kg/hm²,施氮量为268.67 kg/hm²可实现最佳经济产量8 782.12 kg/hm²;拔节期、孕穗期、扬花期和灌浆期临界SPAD值分别为43.07、42.09、49.35和52.07。【结论】 根据各生育时期SPAD值与施氮量的关系建立了氮肥推荐模型,基于冬小麦叶片SPAD值建立的关键生育期氮肥推荐模型可以实现营养诊断和指导分期施肥。

关键词: 滴灌冬小麦; SPAD值; 施氮量; 氮肥推荐模型

Abstract:

【Objective】 To provide a reference for the real-time monitoring of nitrogen nutrition and the scientific and rational application of nitrogen fertilizer during the key growth period of winter wheat under drip irrigation. 【Methods】 The leaf SPAD values of winter wheat under drip irrigation with different nitrogen gradients were obtained by using chlorophyll analyzer SPAD-502, the relationship among leaf SPAD value, nitrogen application amount and yield was analyzed, and the recommended nitrogen fertilizer model of winter wheat at each key growth stage based on SPAD value was established. 【Results】 Leaf SPAD value of drip irrigation winter wheat decreased slowly from jointing stage to booting stage, increased rapidly from booting stage to filling stage, and began to decrease after entering filling stage. The SPAD values of different nitrogen treatments were significantly different at different growth stages excluding milk maturity stage. There was a significant linear correlation between leaf SPAD and nitrogen application at jointing stage, booting stage, flowering stage and filling stage, and the correlation coefficient was above 0.826; The relationship between yield and nitrogen application was quadratic function,Y= -0.034,5X²+19.494X+6,035;The highest yield was 8,789 kg/hm², and the corresponding nitrogen application was 282.52 kg/hm², In order to obtain the optimal economic yield of 8,782.12 kg/hm², the nitrogen application amount was 268.67 kg/hm²; The critical SPAD values at jointing, booting, flowering and filling stages were 43.07、42.09、49.35 and 52.07, respectively. 【Conclusion】 A ideal nitrogen recommendation model was established according to the relationship between SPAD value and nitrogen application amount in each growth period.The recommended nitrogen fertilizer model based on SPAD value of wheat leaves can realize nutrient diagnosis and guide phased fertilization.

Key words: drip-irrigated winter wheat; SPAD value; nitrogen application rate; nitrogen fertilizer recommendation of topdressing

中图分类号:

S512

孙法福, 赖宁, 耿庆龙, 李永福, 吕彩霞, 信会男, 李娜, 陈署晃. 基于SPAD值的滴灌冬小麦氮肥推荐模型分析[J]. 新疆农业科学, 2024, 61(10): 2366-2373.

SUN Fafu, LAI Ning, GENG Qinglong, LI Yongfu, LYU Caixia, XIN Huinan, LI Na, CHEN Shuhuang. Study on recommended nitrogen fertilizer quota for winter wheat under drip irrigation based on SPAD value[J]. Xinjiang Agricultural Sciences, 2024, 61(10): 2366-2373.

图/表 6

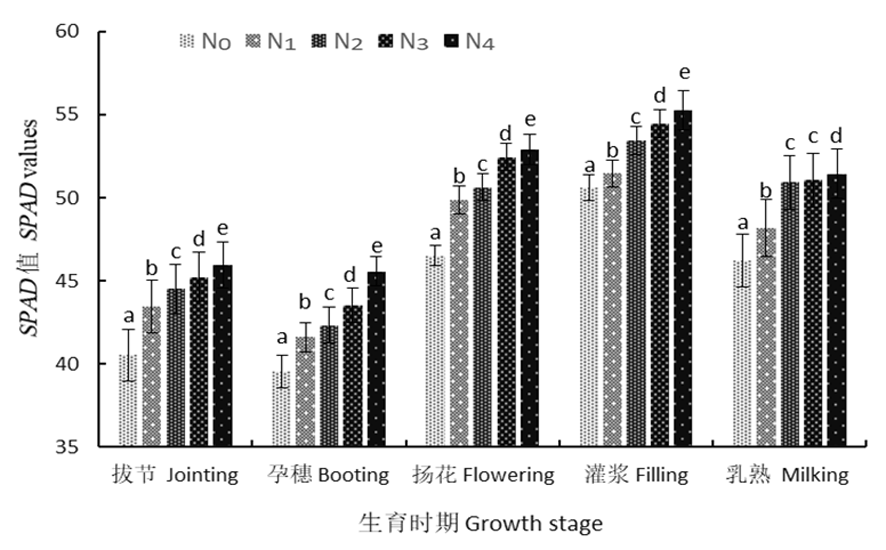

图1 不同施氮量下灌冬小麦各生育时期的叶片SPAD值注:同时期内不同字母表示不同处理间差异显著(P<0.05)

Fig. 1 Irrigation of winter wheat under different n application rate of each growth period of leaf SPAD values Note: At the same time period, different letters mean significant difference between different processing (P<0.05)

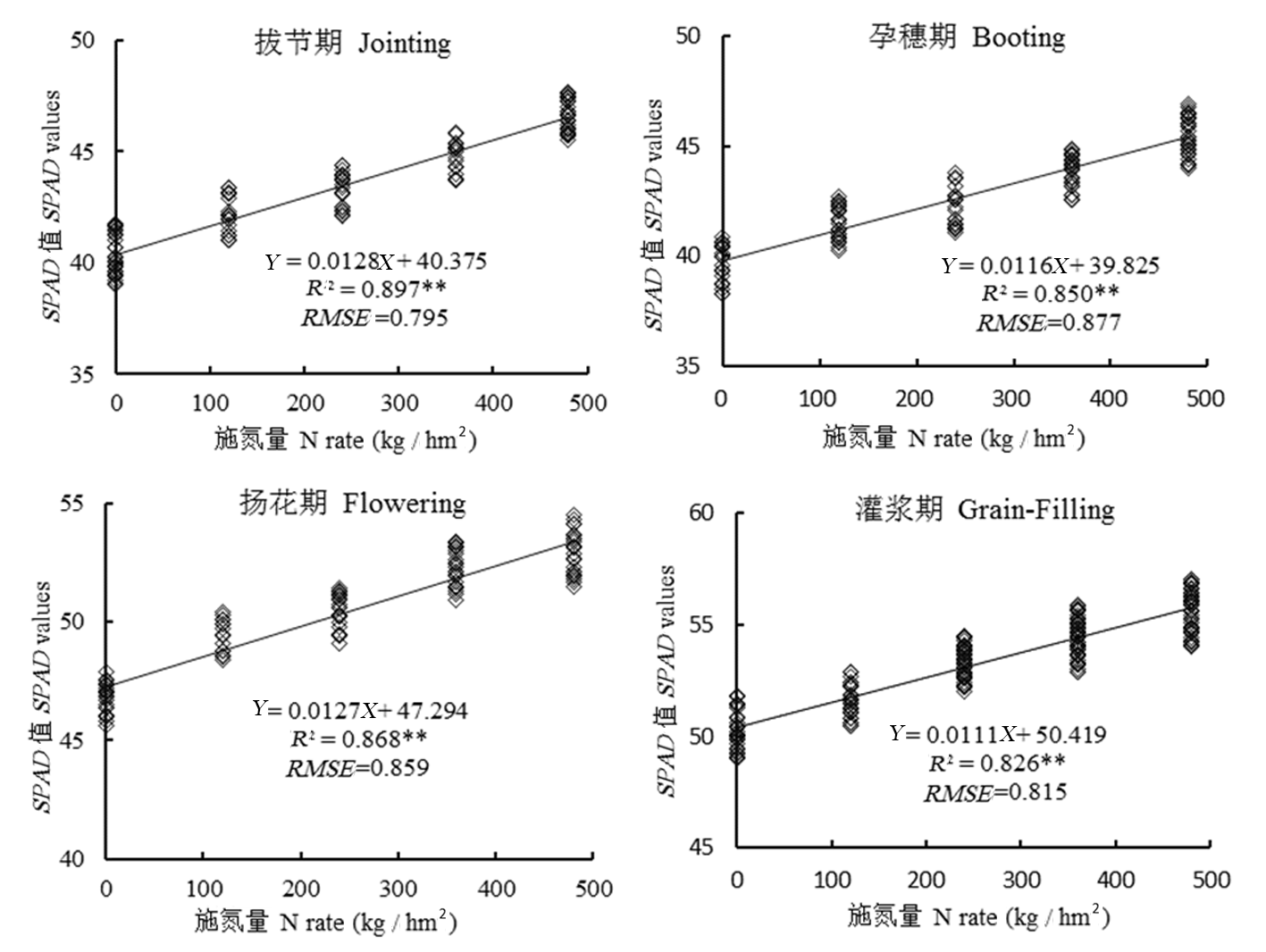

图2 滴灌冬小麦主要生育时期叶片SPAD值与施氮量的关系注:*、**、分别代表 0.05、0.01水平差异显著,下同

Fig.2 Drip irrigation of winter wheat growth period mainly leaf SPAD values and the relationship between n application rate Note:*、** Respectively 0.05, 0.01 significant level,The same in the flowing figures,the same as below

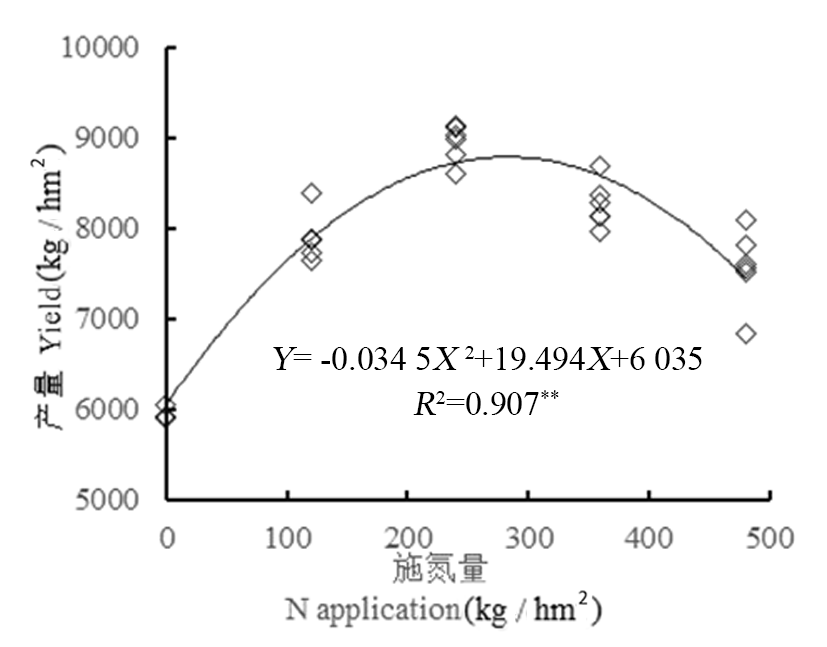

图3 滴灌冬小麦产量与施氮量的关系

Fig.3 Drip irrigation of winter wheat yield and n application

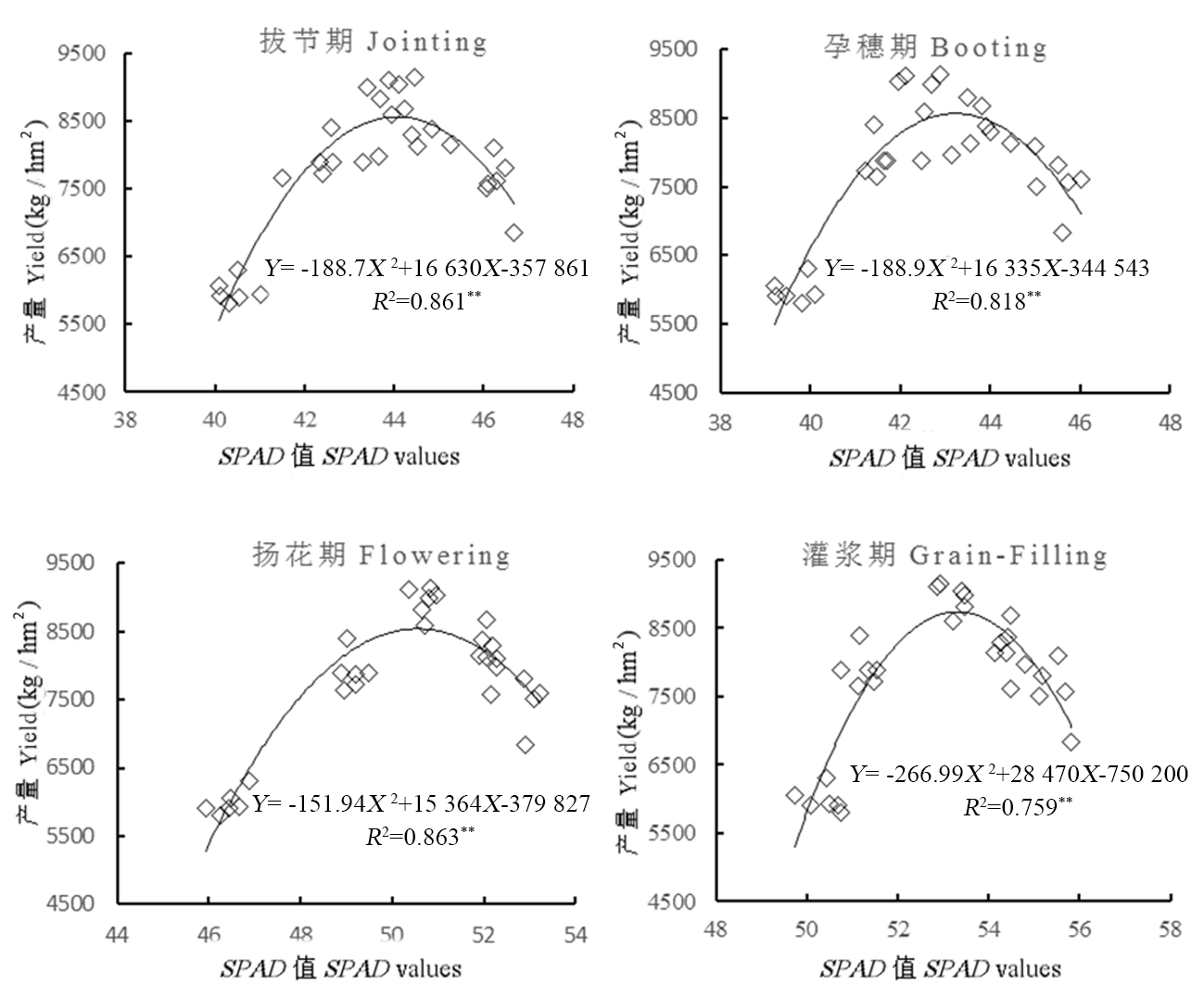

图4 滴灌冬小麦各生育时期叶片SPAD值与产量的关系

Fig.4 Relationship between leaf SPAD value and yield at each growth stage of winter wheat under drip irrigation

表1 滴灌冬小麦各生育时期氮肥推荐模型

Tab.1 Recommended nitrogen fertilizer models for drip-irrigated winter wheat at different growth stages

生育时期 Growth stages	a	b	氮肥推荐模型 The model of N recommended rate
拔节期Jointing	40.375	0.0128	Nd=3 422.97-SPAD/0.012 8
孕穗期Booting	39.825	0.0116	Nd=3 701.86-SPAD/0.011 6
扬花期Flowering	47.294	0.0127	Nd=3 992.61-SPAD/0.012 7
灌浆期Filling	50.419	0.0111	Nd=4 810.92-SPAD/0.011 1

表2 基于SPAD值滴灌冬小麦各关键生育期氮肥追肥推荐

Tab.2 Based on the SPAD value drip the growth period of winter wheat in various key nitrogen fertilizer recommendation table

拔节期 Jointing		孕穗期 Booting		扬花期 Flowering		灌浆期 Filling
SPAD值 SPAD value	施氮量 N application/ (kg/hm²)	SPAD值 SPAD value	施氮量 N application/ (kg/hm²)	SPAD值 SPAD value	施氮量 N application/ (kg/hm²)	SPAD值 SPAD value	施氮量 N application/ (kg/hm²)
< 43.46	27.66	< 42.47	40.31	< 50.19	40.31	< 53.10	26.86
43.51~43.46	23.75~27.66	42.47~42.52	36.34~40.31	50.19~50.22	38.28~40.31	53.10~53.12	25.33~26.86
43.51~43.56	23.75~19.85	42.52~42.59	36.34~30.31	50.22~50.29	32.77~38.28	53.12~53.16	25.33~21.73
43.56~43.61	19.85~15.94	42.59~42.66	30.31~24.27	50.29~50.36	32.77~27.26	53.16~53.20	21.73~18.13
43.61~43.66	15.94~12.03	42.66~42.73	24.27~18.24	50.36~50.43	27.26~21.74	53.20~53.24	18.13~14.52
43.66~43.71	12.03~8.13	42.73~42.80	18.24~12.21	50.43~50.50	21.74~16.23	53.24~53.28	14.52~10.92
43.71~43.76	8.13~4.22	42.80~42.87	12.21~6.17	50.50~50.57	16.23~10.72	53.28~53.32	10.92~7.32
43.76~43.82	4.22~0	42.87~42.94	6.17~0	50.57~50.64	10.72~5.21	53.32~53.36	7.32~3.71
				50.64~50.71	5.21~0	53.36~53.4	3.71~0.11

参考文献 28

[1]	王东. 施氮量对土壤氮素变化和小麦产量与品质影响的生理生态基础[D]. 泰安: 山东农业大学, 2005: 1.
	WANG Dong. Effect of Nitrogen Fertilizer Rate on Change of Soil Nitrogen and on Yield and Quality in Wheat and Its Physiological and Ecological Basis[D]. Taian: Shandong Agricultural University, 2005: 1.
[2]	鞠正春, 于振文. 追施氮肥时期对冬小麦旗叶叶绿素荧光特性的影响[J]. 应用生态学报, 2006, 17(3): 3395-3398.
	JU Zhengchun, YU Zhenwen. Effects of nitrogen topdressing at different growth stage on chlorophyll fluorescence of winter wheat flag leaves[J]. Chinese Journal of Applied Ecology, 2006, 17(3): 3395-3398.
[3]	曹卫星. 作物栽培学总论[M].2版. 北京: 科学出版社, 2011: 216.
	CAO Weixing. General introduction of crop cultivation[M]. 2nd ed. Beijing: Science Press, 2011: 216.
[4]	Chang N J, Zhai Z, Li H, et al. Impacts of nitrogen management and organic matter application on nitrous oxide emissions and soil organic carbon from spring maize fields in the North China Plain[J]. Soil and Tillage Research, 2020, 196: 104441.
[5]	Guo J H, Liu X J, Zhang Y, et al. Significant acidification in major Chinese croplands[J]. Science, 2010, 327(5968): 1008-1010. DOI PMID
[6]	Liu X J, Zhang Y, Han W X, et al. Enhanced nitrogen deposition over China[J]. Nature, 2013, 494(7438): 459-462.
[7]	雷钧杰, 张永强, 赛力汗·赛, 等. 施氮量对滴灌冬小麦干物质积累、分配及转运特征的影响[J]. 新疆农业科学, 2016, 53(1): 77-83.
	LEI Junjie, ZHANG Yongqiang, Sailihan Sai, et al. Effects of different nitrogen application rates on dry matter accumulation, distribution and translocation in winter wheat under drip irrigation[J]. Xinjiang Agricultural Sciences, 2016, 53(1): 77-83.
[8]	李宁, 王振华. 北疆不同灌水次数对滴灌春小麦生长及产量的影响[J]. 节水灌溉, 2013,(7): 13-15.
	LI Ning, WANG Zhenhua. Influence of different irrigation frequency on growth and yield of spring wheat under drip irrigation in northern Xinjiang[J]. Water Saving Irrigation, 2013,(7): 13-15.
[9]	彭婷, 蒋桂英, 段瑞萍, 等. 滴灌春小麦群体质量与产量的关系[J]. 麦类作物学报, 2014, 34(5): 655-661.
	PENG Ting, JIANG Guiying, DUAN Ruiping, et al. Relationships between population quality and yield of drip-irrigated spring wheat[J]. Journal of Triticeae Crops, 2014, 34(5): 655-661.
[10]	郭建华, 赵春江, 王秀, 等. 作物氮素营养诊断方法的研究现状及进展[J]. 中国土壤与肥料, 2008,(4): 10-14.
	GUO Jianhua, ZHAO Chunjiang, WANG Xiu, et al. Research advancement and status on crop nitrogen nutrition diagnosis[J]. Soil and Fertilizer Sciences in China, 2008,(4): 10-14.
[11]	蒋阿宁, 黄文江, 刘克礼, 等. 利用叶绿素计进行冬小麦变量施肥及其效应研究[J]. 植物营养与肥料学报, 2007, 13(6): 1092-1097.
	JIANG Aning, HUANG Wenjiang, LIU Keli, et al. Study on chlorophyll meter-based variable rate fertilizer application and influence on winter wheat[J]. Plant Nutrition and Fertilizer Science, 2007, 13(6): 1092-1097.
[12]	史力超, 翟勇, 王雪艳, 等. 基于叶片SPAD值的滴灌春小麦氮肥分期施用推荐模型[J]. 干旱地区农业研究, 2017, 35(1): 103-107.
	SHI Lichao, ZHAI Yong, WANG Xueyan, et al. Recommendation model of nitrogen fertilizer based on SPAD of leaves for drip-irrigated spring wheat[J]. Agricultural Research in the Arid Areas, 2017, 35(1): 103-107.
[13]	边立丽, 艾栋, 陈玉蓝, 等. 基于SPAD值的烤烟氮素营养诊断研究[J]. 中国土壤与肥料, 2022,(5): 177-183.
	BIAN Lili, AI Dong, CHEN Yulan, et al. Study on nitrogen nutrition diagnosis of flue-cured tobacco based on SPAD value[J]. Soil and Fertilizer Sciences in China, 2022,(5): 177-183.
[14]	李志宏, 张云贵, 刘宏斌, 等. 叶绿素仪在夏玉米氮营养诊断中的应用[J]. 植物营养与肥料学报, 2005, 11(6): 764-768.
	LI Zhihong, ZHANG Yungui, LIU Hongbin, et al. Application of chlorophyll meter on N nutritional diagnosis for summer corn[J]. Plant Nutrition and Fertilizing Science, 2005, 11(6): 764-768.
[15]	朱丽丽, 李井会, 宋述尧. 叶绿素仪和硝酸盐反射仪对大白菜氮素营养诊断的比较研究[J]. 东北农业科学, 2019, 44(5): 65-68, 128.
	ZHU Lili, LI Jinghui, SONG Shuyao. Comparison of chlorophyll meter and nitrate reflectrometer of nitrogen nutrition diagnosis of Chinese cabbage[J]. Journal of Northeast Agricultural Sciences, 2019, 44(5): 65-68, 128.
[16]	屈卫群, 王绍华, 陈兵林, 等. 棉花主茎叶SPAD值与氮素营养诊断研究[J]. 作物学报, 2007, 33(6): 1010-1017.
	QU Weiqun, WANG Shaohua, CHEN Binglin, et al. SPAD value of cotton leaves on main stem and nitrogen diagnosis for cotton growth[J]. Acta Agronomica Sinica, 2007, 33(6): 1010-1017.
[17]	夏文豪, 刘涛, 关钰, 等. 硝酸盐反射仪和SPAD法对玉米氮素营养诊断的比较[J]. 中国生态农业学报, 2016, 24(10): 1339-1346.
	XIA Wenhao, LIU Tao, GUAN Yu, et al. Comparison of RQ flex and SPAD methods of diagnosing maize(Zea mays) nitrogen nutrient[J]. Chinese Journal of Eco-Agriculture, 2016, 24(10): 1339-1346.
[18]	郭建华, 王秀, 陈立平, 等. 快速获取技术在小麦推荐施肥中的应用[J]. 土壤通报, 2010, 41(3): 664-667.
	GUO Jianhua, WANG Xiu, CHEN Liping, et al. Application of rapidly diagnosis technique on N recommended fertilization for wheat[J]. Chinese Journal of Soil Science, 2010, 41(3): 664-667.
[19]	朱云, 史力超, 冶军, 等. 滴灌春小麦氮素营养诊断施肥方法研究[J]. 麦类作物学报, 2015, 35(1): 93-98.
	ZHU Yun, SHI Lichao, YE Jun, et al. Comparison of three rapid diagnosis methods for N fertilizing on drip-irrigated spring wheat[J]. Journal of Triticeae Crops, 2015, 35(1): 93-98.
[20]	李新伟, 吕新, 张泽, 等. 棉花氮素营养诊断与追肥推荐模型[J]. 农业机械学报, 2014, 45(12): 209-214.
	LI Xinwei, LÜ Xin, ZHANG Ze, et al. Diagnosis of nitrogen nutrition and recommended model of topdressing for cotton[J]. Transactions of the Chinese Society for Agricultural Machinery, 2014, 45(12): 209-214.
[21]	赖宁, 耿庆龙, 李青军, 等. 基于RapidSCAN CS-45的新疆滴灌冬小麦氮肥推荐研究[J]. 麦类作物学报, 2021, 41(1): 96-104.
	LAI Ning, GENG Qinglong, LI Qingjun, et al. Study on nitrogen fertilizer recommendation based on RapidSCAN CS-45 for drip-irrigated winter wheat in Xinjiang[J]. Journal of Triticeae Crops, 2021, 41(1): 96-104.
[22]	胡昊, 白由路, 杨俐苹, 等. 基于SPAD-502与GreenSeeker的冬小麦氮营养诊断研究[J]. 中国生态农业学报, 2010, 18(4): 748-752.
	HU Hao, BAI Youlu, YANG Liping, et al. Diagnosis of nitrogen nutrition in winter wheat (Triticum aestivum) via SPAD-502 and GreenSeeker[J]. Chinese Journal of Eco-Agriculture, 2010, 18(4): 748-752.
[23]	潘薇薇, 危常州, 丁琼, 等. 膜下滴灌棉花氮素推荐施肥模型的研究[J]. 植物营养与肥料学报, 2009, 15(1): 204-210.
	PAN Weiwei, WEI Changzhou, DING Qiong, et al. Nitrogenous fertilizer recommendation model for cotton under mulch-drip irrigation[J]. Plant Nutrition and Fertilizer Science, 2009, 15(1): 204-210.
[24]	徐向阳, 白如霄, 艾海峰, 等. 新疆塔额盆地滴灌冬小麦氮营养诊断研究[J]. 中国土壤与肥料, 2023,(11): 67-73.
	XU Xiangyang, BAI Ruxiao, AI Haifeng, et al. Nitrogen nutrition diagnosis for drip-irrigated winter wheat in Ta’e Basin, Xinjiang[J]. Soil and Fertilizer Sciences in China, 2023,(11): 67-73.
[25]	Blackmer T M, Schepers J S. Techniques for monitoring crop nitrogen status in corn[J]. Communications in Soil Science and Plant Analysis, 1994, 25(9/10): 1791-1800.
[26]	Schepers J S, Francis D D, Vigil M, et al. Comparison of corn leaf nitrogen concentration and chlorophyll meter readings[J]. Communications in Soil Science and Plant Analysis, 1992, 23(17/18/19/20): 2173-2187.
[27]	Minotti P L, Halseth D E, Sieczka J B. Field chlorophyll measurements to assess the nitrogen status of potato varieties[J]. HortScience, 1994, 29(12): 1497-1500.
[28]	Campbell R J, Mobley K N, Marini R P, et al. Growing conditions alter the relationship between SPAD-501 values and apple leaf chlorophyll[J]. HortScience, 1990, 25(3): 330-331.
