Study on Optimization of Anti-browning Technology of Heat Pump Drying Seedless Green Raisins by Response Surface Methodology

doi:10.6048/j.issn.1001-4330.2022.03.012

Xinjiang Agricultural Sciences ›› 2022, Vol. 59 ›› Issue (3): 625-633.DOI: 10.6048/j.issn.1001-4330.2022.03.012

• Horticultural Special Local Products·Agricultural Product Processing • Previous Articles Next Articles

Study on Optimization of Anti-browning Technology of Heat Pump Drying Seedless Green Raisins by Response Surface Methodology

LIAN Weijia(), CHEN Ya, HAN Chen, LI Haifeng, LIU Zhigang, XU Guixiang, LEI Jing(), WU Jiuyun()

Turpan Institute of Agricultural Sciences,Xinjiang Academy of Agricultural Sciences,Turpan Xinjiang 838000,China

Received:2021-03-11 Online:2022-03-20 Published:2022-03-28
Correspondence author: LEI Jing, WU Jiuyun
Supported by:
Tianshan youth program project (outstanding young scientific and technological talents) "Research on browning mechanism and control technology of raisin cleaning"(2019Q052);The Central Finance Forestry and Grass Technology Promotion Demonstration Project "Integrated Demonstration and Promotion of High-quality and Efficient Cultivation Technology of Fresh Table Grapes in Turpan Basin" (Xin [2019] No. TG12);Autonomous Region Science and Technology Commissioner rural science and technology entrepreneurship action project "Demonstration and promotion of green raisin anti-browning cleaning technology"

响应面法优化热泵干燥绿色葡萄干防褐变工艺

廉苇佳(), 陈雅, 韩琛, 李海峰, 刘志刚, 徐桂香, 雷静(), 吴久赟()

新疆农业科学院吐鲁番农业科学研究所,新疆吐鲁番 838000

通讯作者: 雷静,吴久赟
作者简介:廉苇佳(1991-),女,甘肃会宁人,助理研究员,硕士,研究方向为农产品加工与安全,(E-mail) 1634321773@qq.com
基金资助:
天山青年计划项目(优秀青年科技人才)“葡萄干清洗褐变机理及调控技术研究”2019Q052(2019Q052);中央财政林草科技推广示范项目“吐鲁番盆地鲜食葡萄优质高效栽培技术集成示范与推广”(新[2019]TG12号);自治区科技特派员农村科技创业行动项目“绿葡萄干防褐变清洗技术示范与推广”

Abstract

Abstract:

【Objective】 To solve the problem that raisins are easy to brown after cleaning green raisins in processing enterprises that seriously affects the quality and price of raisins. 【Methods】 The heat pump drying technology with high drying efficiency and good product quality was adopted. Based on the single factor experiment, the drying temperature, drying relative humidity and moisture discharge time were selected as the influencing factors, and the browning index BI value was taken as the index. Through response surface methodology design and analysis, the quadratic polynomial regression equation prediction model was obtained, and the best conditions for heat pump drying of green raisins after cleaning were determined. 【Results】 The mathematical model of BI value of green raisins obtained by response surface methodology was BI = 25.70-1.18A + 0.26B-0.081C + 0.99AB-0.032AC - 0.50BC + 3.13A ²+ 0.85B²+ 0.47C². According to regression analysis, the best conditions for drying green raisins after cleaning by heat pump were drying temperature 51.19℃ and relative humidity 6.68%, moisture removal time 2.93 min. This experiment was limited by the parameters of heat pump drying equipment. The drying temperature was 51℃, the relative humidity is 7% and the moisture discharge time was 3 min. At this time, the browning index BI value of raisins was only 25.55, 23.23% lower than that of traditional hot air drying, which might be possible to provide reference for enterprises to dry and clean green raisins. 【Conclusion】 The drying of green raisin after cleaning is very important, which has an important influence on the color of green raisin. Heat pump drying technology can not only quickly remove the surface moisture of raisin, reduce browning, but also maintain the green color and flavor nutrition of raisin. Therefore, a method for drying and cleaning the green raisin is provided.

Key words: raisins; ultrasonic-assisted method; anti-browning; BI value

摘要：

【目的】研究运用响应面法优化热泵干燥绿色葡萄干防褐变工艺。【方法】采用干燥效率高、产品品质好的热泵干燥技术,在单因素实验基础上,选择干燥温度、干燥相对湿度和排潮时间为影响因子,褐变指数BI值为指标,通过响应曲面法设计和分析,得到二次多项式回归方程预测模型,确定清洗后绿色葡萄干热泵干燥的最佳条件。【结果】绿色葡萄干BI值的数学模型为BI=25.70-1.18A+0.26B-0.081C+0.99AB-0.032AC-0.50BC+3.13A²+0.85B²+0.47C²,热泵干燥清洗后绿色葡萄干的最佳条件为干燥温度51.19℃,相对湿度6.68%,排潮时间2.93 min,受热泵干燥设备参数限制,选取干燥温度51℃、相对湿度7%和排潮时间3 min验证实验,葡萄干的褐变指数BI值仅为25.55,较传统热风干燥降低23.23%。【结论】绿色葡萄干清洗后的干燥极其重要,对绿色葡萄干色泽的保持有重要影响。热泵干燥技术不仅能够快速除去葡萄干表面水分、减少褐变,而且能够较好的保持葡萄干碧绿色泽及风味营养。

关键词: 葡萄干, 热泵干燥, 防褐变, BI值

CLC Number:

LIAN Weijia, CHEN Ya, HAN Chen, LI Haifeng, LIU Zhigang, XU Guixiang, LEI Jing, WU Jiuyun. Study on Optimization of Anti-browning Technology of Heat Pump Drying Seedless Green Raisins by Response Surface Methodology[J]. Xinjiang Agricultural Sciences, 2022, 59(3): 625-633.

廉苇佳, 陈雅, 韩琛, 李海峰, 刘志刚, 徐桂香, 雷静, 吴久赟. 响应面法优化热泵干燥绿色葡萄干防褐变工艺[J]. 新疆农业科学, 2022, 59(3): 625-633.

Figures/Tables 9

Table 1 Response surface factors and levels

水平 Levels	因素 Factors
水平 Levels	A干燥温度 A Drying temperature (℃)	B相对湿度 B relative humidity (%)	C排潮时间 C Tide drainage time (min)
+1	55	8	4
0	50	7	3
-1	45	6	2

Table 2 Effect of different drying temperature on raisin color

干燥温度 Drying temperature (℃)	L^*	a^*	b^*	△E^*	BI
35	20.89 ± 0.33^a	-8.81 ± 0.48^a	11.04 ± 0.29^a	25.22 ± 0.06^a	32.44 ± 0.93^a
40	20.86 ± 0.42^a	-10.15 ± 0.12^b	11.61 ± 0.32^a	25.95 ± 0.48^a	30.65 ±1.98^ab
45	20.41 ± 0.62^a	-10.24 ± 0.18^b	11.18 ± 0.48^a	25.43 ± 0.69^a	27.48 ± 3.13^bc
50	21.22 ± 1.04^a	-10.50 ± 0.23^b	11.29 ± 0.47^a	26.23 ± 1.09^a	25.46± 1.35^c
55	20.70 ± 0.40^a	-9.87 ± 0.21^b	11.49 ± 0.19^a	25.65 ± 0.36^a	31.48 ± 1.23^ab

Table 3 Effect of different relative humidity on raisin color

相对湿度 Relative humidity(%)	L^*	a^*	b^*	△E^*	BI
5	20.41 ± 0.62^a	-10.24± 0.18^b	11.18 ± 0.48^a	25.43 ± 0.69^a	27.48± 3.13^b
6	20.10± 0.41^a	-9.84± 0.16^b	10.90 ± 0.29^a	24.89 ±0.50^a	27.85 ± 1.58^b
7	19.54 ± 0.31^a	-9.96 ± 0.03^b	10.48± 0.16^a	24.31 ± 0.31^a	24.60 ± 0.98^b
8	20.17 ± 0.65^a	-8.58 ± 0.30^a	10.68 ± 0.52^a	25.08± 0.47^a	32.23 ± 1.43^a
9	20.77 ± 0.47^a	-8.71 ± 0.18^a	11.02 ± 0.23^a	24.82 ± 0.67^a	33.00 ± 0.78^a

Table 4 Effect of tide time on raisin color

排潮时间 Tide discharge time (min)	L^*	a^*	b^*	△E^*	BI
1	21.19 ± 0.99^a	-10.19 ± 0.15^a	11.73 ± 0.35^a	26.28 ± 0.93^a	30.74 ± 1.91^a
2	20.70 ± 0.31^a	-10.13± 0.29^a	11.43 ± 0.18^ab	25.73 ± 0.29^a	29.65 ± 2.17^a
3	19.39 ± 0.31^b	-10.25 ± 0.47^a	10.82 ± 0.18^c	24.46 ± 0.51^b	26.47 ± 1.77^a
4	20.18 ± 0.20^ab	-10.31 ± 0.23^a	11.07 ± 0.14^bc	25.22± 0.31^ab	26.73 ± 0.55^a
5	21.07 ± 0.26^a	-10.20 ± 0.40^a	11.47 ± 0.18^ab	26.07 ± 0.39^a	28.76 ± 1.56^a

Table 5 Response surface experiment design and BI value

实验号 Experiment number	因素 Factors			褐变指数BI值 Browning index BI value
实验号 Experiment number	A 干燥温度 A Drying temperature (℃)	B相对湿度 B relative humidity (%)	C排潮时间 C Tide drainage time (min)	褐变指数BI值 Browning index BI value
1	0	1	1	26.65
2	0	0	0	25.70
3	1	1	0	29.65
4	-1	1	0	30.23
5	1	-1	0	27.13
6	0	0	0	25.58
7	0	0	0	25.62
8	0	1	-1	27.91
9	1	0	-1	28.29
10	0	-1	1	27.13
11	0	-1	-1	26.39
12	1	0	1	28.16
13	0	0	0	25.88
14	-1	0	-1	30.38
15	0	0	0	25.72
16	-1	-1	0	31.69
17	-1	0	1	30.38

Table 6 Regression model and analysis of variance

变异源 Source of variation		平方和 Sum of square	自由度 Degrees of freedom	均方 Mean square		F值 F value	P值 P value	显著性 Distinctiveness
模型 model		64.31	9	7.15		315.01	﹤0.000 1	$* *$
A干燥温度 A Drying temperature		11.16	1	11.16		492.14	﹤0.000 1	$* *$
B 相对湿度 B relative humidity		0.55	1	0.55		24.30	0.001 7	$* *$
C 排潮时间 C Tide drainage time		0.053	1	0.053		2.33	0.170 9
AB		3.96	1	3.96		174.59	﹤0.000 1	$* *$
AC		4.225E-003	1	4.225E-003		0.19	0.679 0
BC		1.00	1	1.00		44.09	0.000 3	$* *$
A²		41.22	1	41.22		1817.16	﹤0.000 1	$* *$
B²		3.02	1	3.02		132.94	﹤0.000 1	$* *$
C²		0.95	1	0.95		41.66	0.000 3	$* *$
残差 Residual		0.16	7	0.023
失拟项 Mismatch		0.11	3	0.035		2.62	0.187 9
纯误差 Pure error		0.054	4	0.013
总和 sum		64.47	16
R²=0.997 5	$R Adj 2$ =0.994 4				C.V.%=0.54

Table 6 Regression model and analysis of variance

变异源 Source of variation		平方和 Sum of square	自由度 Degrees of freedom	均方 Mean square		F值 F value	P值 P value	显著性 Distinctiveness
模型 model		64.31	9	7.15		315.01	﹤0.000 1	$* *$
A干燥温度 A Drying temperature		11.16	1	11.16		492.14	﹤0.000 1	$* *$
B 相对湿度 B relative humidity		0.55	1	0.55		24.30	0.001 7	$* *$
C 排潮时间 C Tide drainage time		0.053	1	0.053		2.33	0.170 9
AB		3.96	1	3.96		174.59	﹤0.000 1	$* *$
AC		4.225E-003	1	4.225E-003		0.19	0.679 0
BC		1.00	1	1.00		44.09	0.000 3	$* *$
A²		41.22	1	41.22		1817.16	﹤0.000 1	$* *$
B²		3.02	1	3.02		132.94	﹤0.000 1	$* *$
C²		0.95	1	0.95		41.66	0.000 3	$* *$
残差 Residual		0.16	7	0.023
失拟项 Mismatch		0.11	3	0.035		2.62	0.187 9
纯误差 Pure error		0.054	4	0.013
总和 sum		64.47	16
R²=0.997 5	$R Adj 2$ =0.994 4				C.V.%=0.54

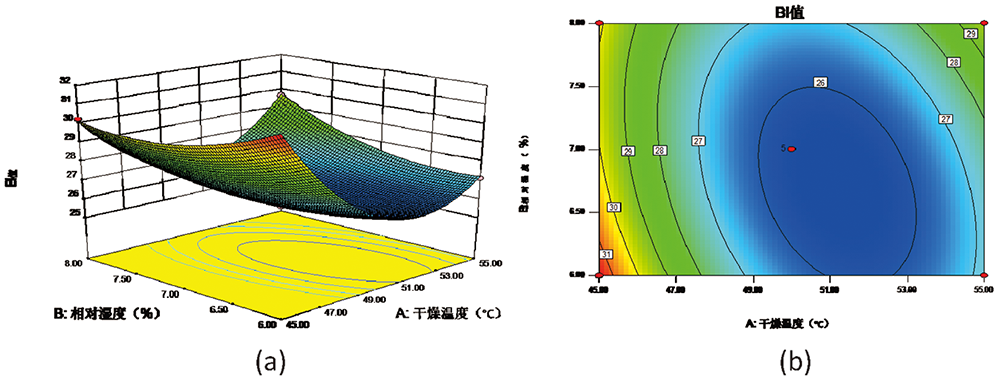

Fig.1 Response surface figure (a) and contour map (b) of effect between drying temperature and relative humidity on BI value

Fig.2 Response surface figure (a) and contour map (b) of effect between drying temperature and discharge tide time on BI value

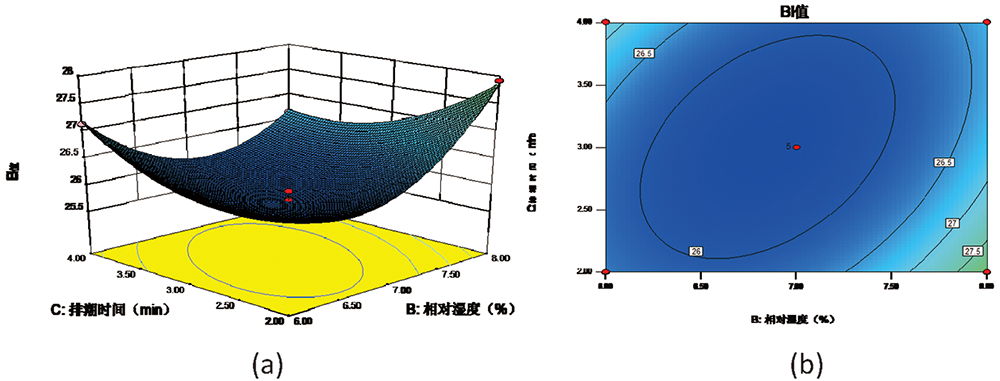

Fig.3 Response surface figure (a) and contour map (b) of effect between relative humidity and discharge tide time on BI value

References 23

[1]	$\rm{\dot{T}}$brahim Doymaz. Drying kinetics of black grapes treated with different solutions[J]. Journal of Food Engineering, 2005, 76(2): 212-217. DOI URL
[2]	Sawhney D. Review of research and development work on solar dryers for grape drying[J]. Energy Conversion and Management, 2002, 43(1): 45-61. DOI URL
[3]	Gavirangappa H, Harshini M, Arugakeerthy C, et al. Effect of adsorbent and acidulants on enzymatic browning of sugarcane juice[J]. Journal of Food Science & Technology, 2018, 55(10): 4356-4362.
[4]	刘清, 胡小松, 谢奇珍, 等. 新疆无核白葡萄干精加工干燥工艺[J]. 农业工程学报, 2008, 24(12): 221-225.
	LIU Qing, HU Xiaosong, XIE Qizhen, et al. Drying process of Xinjiang seedless white raisins finishing[J]. Journal of Agricultural Engineering, 2008, 24(12): 221-225.
[5]	张英丽, 江英, 陈计峦, 等. 无核葡萄干燥特性的研究[J]. 食品工业科技, 2009, 30(11): 72-73, 76.
	ZHANG Yingli, JIANG Ying, CHEN Jiluan, et al. Study on the drying characteristics of seedless grapes[J]. Science and Technology of Food Industry, 2009, 30(11): 72-73, 76.
[6]	郑永菊. 绿葡萄干加工的关键技术研究[D]. 杨凌:西北农林科技大学, 2012.
	ZHENG Yongju. Research on the key technology of green raisin processing[D]. Yangling: Northwest A & F University, 2012.
[7]	侯旭杰, 张滨, 热衣木江, 等. 无核葡萄干护色保绿技术实验[J]. 塔里木农垦大学学报, 2000,(1): 9-12.
	HOU Xujie, ZHANG Bin, Reyi Mujiang, et al. Experiments on colorless and green color preservation technology of seedless raisins[J]. Journal of Tarim Agricultural Reclamation University, 2000,(1): 9-12.
[8]	曲留柱. 香蕉多酚氧化酶特性及其催化褐变防控的研究[D]. 北京:北京林业大学, 2014.
	QU Liuzhu. Research on the characteristics of banana polyphenol oxidase and its catalytic browning prevention and control[D]. Beijing: Beijing Forestry University, 2014.
[9]	张波, 姬长英, 徐伟悦, 等. 不同预处理下无核厚皮葡萄热泵式分段干燥特性及品质比较[J]. 江苏农业学报, 2018, 34(5): 1144-1152.
	ZHANG Bo, JI Changying, XU Weiyue, et al. Heat pump staged drying characteristics and quality comparison of seedless thick skin grapes under different pretreatments[J]. Jiangsu Agricultural Sciences 2018, 34(5): 1144-1152.
[10]	堵劲松, 王宏生, 王兵, 等. 温湿度对白肋烟处理质量的影响[J]. 中国烟草学报, 2001,(3): 1-5.
	DU Jinsong, WANG Hongsheng, WANG Bing, et al. The influence of temperature and humidity on the treatment quality of burley tobacco[J]. Acta Tabacaria Sinica, 2001,(3): 1-5.
[11]	谢乐芳, 王力, 李健, 等. 果蔬褐变度的研究进展[J]. 内蒙古民族大学学报(自然科学版), 2017, 32(1): 24-28.
	XIE Lefang, WANG Li, LI Jian, et al. Research progress of browning degree of fruits and vegetables[J]. Journal of Inner Mongolia University for Nationalities (Natural Science), 2017, 32(1): 24-28.
[12]	毕双同. 果蔬加工过程中的褐变及护色措施[J]. 农业与技术, 2018, 38(23): 22-23.
	BI Shuangtong. Browning and color protection measures in the processing of fruits and vegetables[J]. Agriculture and Technology, 2018, 38(23): 22-23.
[13]	张利娟. 葡萄干的抗氧化特性及防褐变工艺研究[D]. 杨凌:西北农林科技大学, 2013.
	ZHANG Lijuan. Research on anti-oxidation characteristics and anti-browning technology of raisins[D]. Yangling: Northwest A&F University, 2013.
[14]	Hemachandran H, Anantharaman A, Mohan S, et al. Unraveling the inhibition mechanism of cyanidin-3-sophoroside on polyphenol oxidase and its effect on enzymatic browning of apples[J]. Food Chemistry, 2017, (227): 102-110.
[15]	P. Yingsanga V, Srilaong S,. Kanlayanarat , et al. Relationship between browning and related enzymes (PAL, PPO and POD) in rambutan fruit (Nephelium lappaceum Linn.) cvs. Rongrien and See-Chompoo[J]. Postharvest Biology and Technology, 2008, 50(2-3): 164-168. DOI URL
[16]	林河通, 席玙芳, 陈绍军. 果实贮藏期间的酶促褐变[J]. 福州大学学报(自然科学版), 2002,(S1): 696-703.
	LIN Hetong, XI Yuefang, CHEN Shaojun. Enzymatic browning during fruit storage[J]. Journal of Fuzhou University (Natural Science), 2002,(S1): 696-703.
[17]	王彬, 陈敏氡, 朱海生, 等. 果蔬酶促褐变研究进展[J]. 中国农学通报, 2016, 32(28): 189-194.
	WANG Bin, CHEN Mindong, ZHU Haisheng, et al. Research progress of enzymatic browning in fruits and vegetables[J]. Chinese Agricultural Science Bulletin, 2016, 32(28): 189-194.
[18]	Lante A, Tinello F, Nicoletto M. UV-A light treatment for controlling enzymatic browning of fresh-cut fruits[J]. Innovative Food Science and Emerging Technologies, 2016,(34): 141-147.
[19]	郭振华, 张立新, 陈换美, 等. 清洗技术在新疆干果生产中的应用与探索[J]. 绿洲农业科学与工程, 2016,(1): 32-35.
	GUO Zhenhua, ZHANG Lixin, CHEN Huanmei, et al. Application and exploration of cleaning technology in the production of dried fruits in Xinjiang[J]. Oasis Agricultural Science and Engineering, 2016, (1): 32-35.
[20]	伍国红, 李玉玲, 王勇, 等. 吐鲁番葡萄主要制干方法及其比较[J]. 西北园艺(果树), 2019,(2): 52-53.
	WU Guohong, LI Yuling, WANG Yong, et al. Main drying methods and comparison of Turpan grapes[J]. Northwest Horticulture (Fruit Trees), 2019,(2): 52-53.
[21]	刘家驹. 绿葡萄干的护色问题[J]. 新疆农业科学, 2007, 44(S): 149-150.
	LIU Jiaju. Color protection of green raisins[J]. Xinjiang Agricultural Sciences, 2007, 44(S): 149-150.
[22]	Lante A, Tinello F, Lomolino G. The use of polyphenol oxidase activity to identify a potential raisin variety[J]. Food Biotechnology, 2016, 30(2): 98-109. DOI URL
[23]	宋小勇, 钟宇, 邓云. 热泵干燥技术的研究现状与发展趋势[J]. 上海交通大学学报(农业科学版), 2014, 32(4): 60-66, 70.
	SONG Xiaoyong, ZHONG Yu, DENG Yun. Research status and development trend of heat pump drying technology[J]. Journal of Shanghai Jiaotong University (Agricultural Science), 2014, 32(4): 60-66, 70.
