Effects of Processing Technology on the Quality of Not-From-Concentrate Apple Juice

doi:10.6048/j.issn.1001-4330.2022.03.014

Xinjiang Agricultural Sciences ›› 2022, Vol. 59 ›› Issue (3): 645-656.DOI: 10.6048/j.issn.1001-4330.2022.03.014

• Horticultural Special Local Products·Agricultural Product Processing • Previous Articles Next Articles

Effects of Processing Technology on the Quality of Not-From-Concentrate Apple Juice

LI Xiaolei¹^,²(), Wang Kezhong³, PAN Yan¹, MA Yan¹, XU Bing¹, ZHANG Ping¹, MENG Xintao¹()

1. Research Institute of Farm Products Storage and Processing, Xinjiang Academy of Agricultural Sciences/Research center of main agricultural products processing engineering in Xinjiang, Urumqi, 830091, China
2. College of Pharmacy and Food Science, Xinjiang Agricultural University, Urumqi 830052, China
3. The Test Center of Xinjiang Provincial Bureau, Urumqi 830026

Received:2021-05-20 Online:2022-03-20 Published:2022-03-28
Correspondence author: MENG Xintao
Supported by:
National Key R & D Program Project(2017YFD0400700);National Key R & D Program Project(2017YFD040070002);National Key R & D Program Project(2017YFD040070002-04);The Youth Fund Project of Xinjiang Academy of Xinjiang Agricultural Sciences(xjnkq-2018011)

非浓缩还原苹果汁加工过程中物料感官品质的变化

李晓磊¹^,²(), 王克众³, 潘俨¹, 马燕¹, 徐斌¹, 张平¹, 孟新涛¹()

1.新疆农科院农产品贮藏加工研究所/新疆主要农副产品精深加工工程技术研究中心,乌鲁木齐 830091
2.新疆农业大学食品科学与药学学院,乌鲁木齐 830052
3.新疆点点星光检测技术有限公司,乌鲁木齐 830054

通讯作者: 孟新涛
作者简介:李晓磊(1994-),女,山东人,硕士,研究方向为果蔬贮藏与加工,(E-mail) 2016178996@qq.com
基金资助:
“十三五”国家重点研发计划(2017YFD0400700);“十三五”国家重点研发计划(2017YFD040070002);“十三五”国家重点研发计划(2017YFD040070002-04);新疆农业科学院青年基金项目(xjnkq-2018011)

Abstract

Abstract:

【Objective】 To clarify the key links of sensory quality change of non-concentrated reduction (NFC) apple juice during processing, It provides theoretical basis for regulating the internal quality of fruit juice and extending the shelf life of fruit juice. 【Methods】 Identify the key link that causes the change of material sensory quality, the color, turbidity, soluble solids, titratable acids and flavor changes of juice samples in each processing link of not-from-concentrate apple juice were determined.【Results】 The results showed that the luminance L and color h significantly decreased by 30.99% (P< 0.01) and 13.45% (P< 0.01), but the chroma C was significantly increased by 27.62% (P< 0.01). The brightness value L and color h increased by 6.75% (P< 0.01) and 10.79% (P< 0.01), while the color C decreased by 18.26% (P< 0.01). Homogenization reduced the brightness value L of juice material by 6.76% (P< 0.01) and the chroma C by 14.33% (P< 0.01). The turbidity of fruit juice was significantly increased by 8.20% (P< 0.01), 4.62% (P< 0.01) and 3.80% (P< 0.05) by enzyme inactivating, sterilization, ultrasound and homogenization. Homogenization and bactericidal processes reduced the soluble solids content by 1.54% (P< 0.05) and 2.04% (P< 0.01), and there was no significant change in the content of titratable acids during the whole process. Color protection reduced the NEBI value of juice materials by 46.73% (P< 0.01), inactivating enzyme increased the NEBI value by 15.5% (P< 0.05), and homogenization increased the NEBI value because part of oxygen was mixed into juice again. Color protection, sterilization and filling make the dissolved oxygen of juice material decrease significantly. The GC-IMS results showed that the enzyme deactivating and sterilization process had a great loss of juice flavor.【Conclusion】 Therefore, each processing link in NFC apple juice processing has an effect on the physicochemical properties of juice.

Key words: NFC apple juice; process; quality

摘要：

【目的】研究非浓缩还原(NFC)苹果汁加工过程中引起物料感官品质变化的关键环节,为调控果汁内在品质和延长果汁货架期提供理论依据。【方法】测定NFC苹果汁的加工各加工环节中果汁样品中颜色、浊度、可溶性固形物和可滴定酸的含量以及风味的变化。【结果】榨汁后NFC苹果汁亮度值L和色泽h下降了30.99%(P<0.01)和13.45%(P<0.01),但色度C升高了27.62%(P<0.01);护色使得亮度值L和色泽h升高了6.75%(P<0.01)和10.79%(P<0.01),色泽C降低了18.26%(P<0.01);均质环节使得果汁物料的亮度值L降低了6.76%(P<0.01),色度C升高了14.33%(P<0.01);灭酶、杀菌、超声和均质均使果汁的浊度显著升高8.20%(P<0.01)、4.62%(P<0.01)、3.80%(P<0.05);均质和杀菌环节使得可溶性固形物含量降低1.54%(P<0.05)和2.04%(P<0.01),且整个加工过程中,可滴定酸的含量没有显著变化。护色使果汁物料的NEBI值降低46.73%(P<0.01),灭酶使得NEBI值升高15.5%(P<0.05),均质也因为部分氧气再次混入果汁使NEBI增加。护色、杀菌和灌装使得果汁物料溶氧量显著降低。灭酶和灭菌环节对果汁风味损失较大。【结论】NFC苹果汁加工过程中的各加工环节对果汁理化特性均有影响。

关键词: 非浓缩还原(NFC)苹果汁, 加工, 感官品质

CLC Number:

S39
S661.1

LI Xiaolei, Wang Kezhong, PAN Yan, MA Yan, XU Bing, ZHANG Ping, MENG Xintao. Effects of Processing Technology on the Quality of Not-From-Concentrate Apple Juice[J]. Xinjiang Agricultural Sciences, 2022, 59(3): 645-656.

李晓磊, 王克众, 潘俨, 马燕, 徐斌, 张平, 孟新涛. 非浓缩还原苹果汁加工过程中物料感官品质的变化[J]. 新疆农业科学, 2022, 59(3): 645-656.

Figures/Tables 11

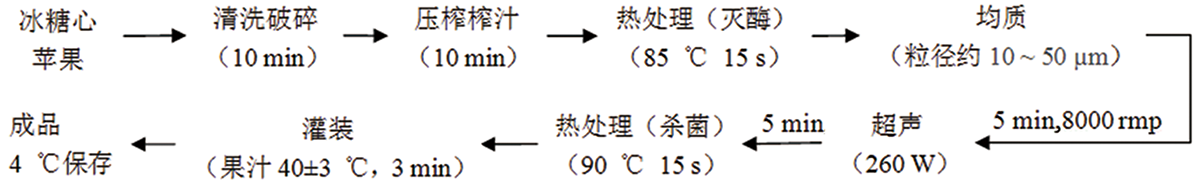

Fig.1 Flow diagram of NFC apple juice production

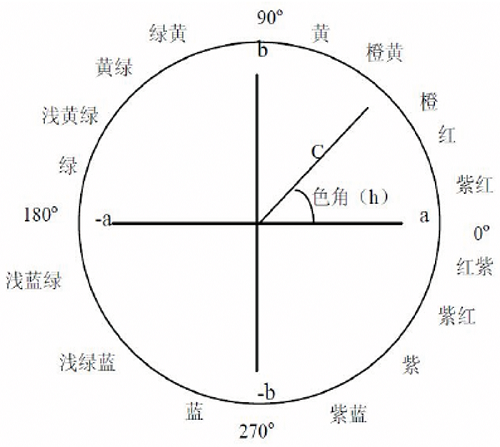

Fig.2 Color Atlas of color h

Fig.3 Changes of peel color and pulp firmness throughout fruit development of Korla fragrant pear Note: Different lowercase letters indicate significant difference among cultivars at alpha =0.05 level

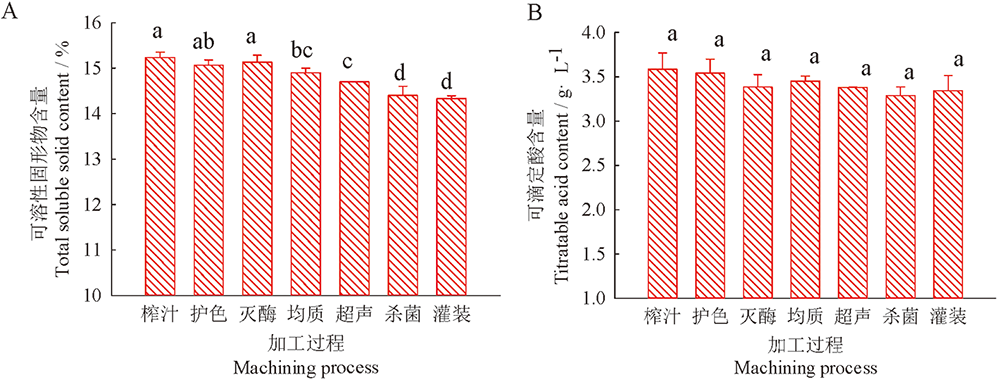

Fig.4 Changes of content of total soluble solid and titratable acid during NFC apple juice processing Note: Different lowercase letters indicate significant difference among cultivars at alpha =0.05 level

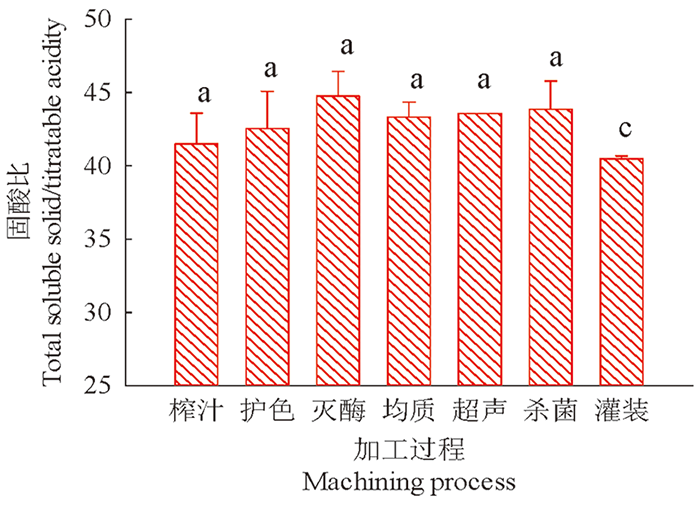

Fig.5 Changes in total soluble solid/titratable acidity during NFC apple juice processing Note: Different lowercase letters indicate significant difference among cultivars at alpha =0.05 level

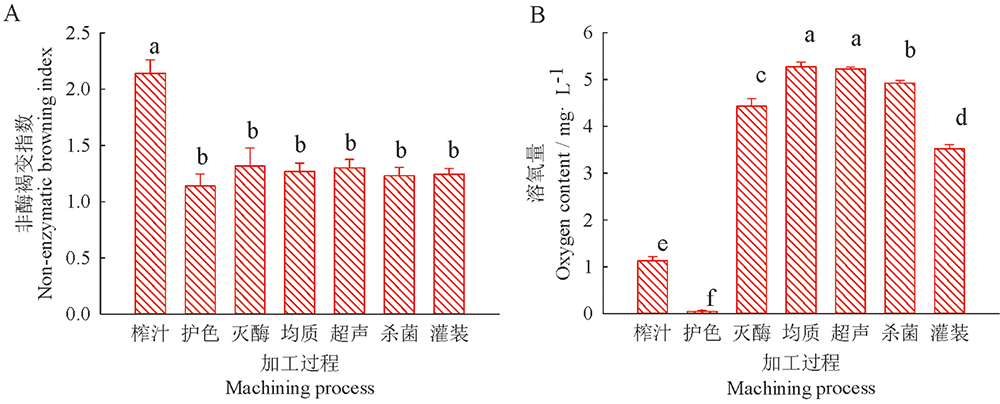

Fig.6 Changes of Oxygen content and Non-enzymatic browing index during NFC apple juice processing Note: Different lowercase letters indicate significant difference among cultivars at alpha =0.05 level

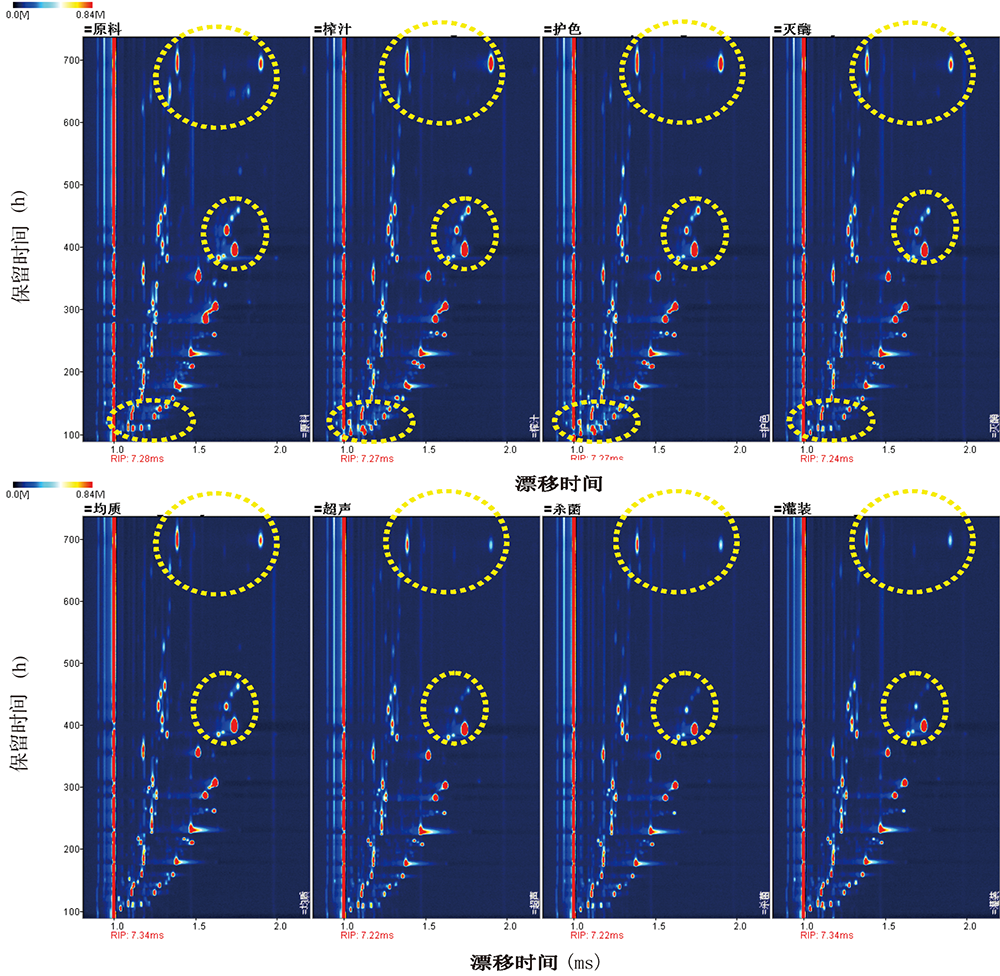

Fig.7 GC-IMS topographic plots of juices in different processing stages

Table 1 The sample Volatiles identified by GC-IMS

	化合物名称 Compound name	CAS#	分子式 Molecular formula	保留指数 Retention index	保留时间 keep time (s)	漂移时间 Drift time (ms)
	酮类
1	2-丙酮	C67630	C₃H₈O	494.9	110.317	1.167
2	2-庚酮	C110430	C₇H₁₄O	883.1	405.02	1.637
	醇类
3	丙醇	C71238	C₃H₈O	550	129.407	1.25
4	2-甲基丙醇	C78831	C₄H₁₀O	614.8	158.173	1.366 4
5	5-甲基-2-呋喃甲醇	C3857258	C₆H₈O₂	959.5	541.047	1.262 1
6	正丁醇	C71363	C₄H₁₀O	660.3	183.397	1.180 7
7	异戊醇	C137326	C₅H₁₂O	735.2	236.798	1.234
8	2-庚醇	C543497	C₇H₁₆O	908.4	445.447	1.723 4
9	正己醇	C111273	C₆H₁₄O	866.1	380.117	1.640 1
	醛类
10	丙醛	C123386	C₃H₆O	496.6	110.858	1.059 7
11	戊醛	C110623	C₅H₁₀O	713.1	219.307	1.186 8
12	丁醛	C123728	C₄H₈O	582.7	142.963	1.122 2
13	己醛	C66251	C₆H₁₂O	788.9	286.482	1.262 2
14	庚醛	C111717	C₇H₁₄O	901.8	434.562	1.328 5
15	辛醛	C124130	C₈H₁₆O	1 005.1	645.225	1.822 5
16	壬醛	C124196	C₉H₁₈O	1 094.4	914.867	1.474 6
	酯类
17	乙酸丙酯	C109604	C₅H₁₀O₂	699.6	209.352	1.481 3
18	丙酸乙酯	C105373	C₅H₁₀O₂	704	212.58	1.453
19	乙酸乙酯	C141786	C₄H₈O₂	602.9	152.325	1.339 9
20	异丁酸乙酯	C97621	C₆H₁₂O₂	745.6	245.555	1.185 4
21	乙酸丁酯	C123864	C₆H₁₂O₂	810.6	309.898	1.239 8
22	乙酸异戊酯	C123922	C₇H₁₄O₂	879.9	400.218	1.296 7
23	乙酸戊酯	C628637	C₇H₁₄O₂	919.2	464.113	1.316 9
	酸类
24	乙酸	C64197	C₂H₄O₂	590.7	146.58	1.052 9
25	2-甲基丙酸(异丁酸)	C79312	C₄H₈O₂	765.8	263.782	1.234 8
26	2-甲基丁酸	C116530	C₅H₁₀O₂	863.7	142.874	1.585 5
	萜烯类
27	α-蒎烯	C80568	C₁₀H₁₆	928.6	480.981	1.287 9
	醚类
28	乙二醇单丁醚	C111762	C₆H₁₄O₂	907.1	443.293	1.291 6

Fig.8 Summary of the ion mobility spectra of juice in different processing stages Note:1-2 are ketones; 3-9 are alcohols; 10-16 are aldehydes; 17-23 are esters; 24-26 are acids; 27 belongs to terpene; 28 belongs to the ether

Fig.9 Peak appearance summary of juice in different processing stages Note:A The content of 9 flavor substances in juice at different processing stages had no significant change; B 4 substances rich in raw materials but reduced after processing; C 6 flavoring substances with high content in juice during juicing and color protection; D The content of 3 flavor substances is reduced in juicing; E With the continuous preparation of fruit juice, the contents of 6 flavor substances changed significantly after enzyme elimination

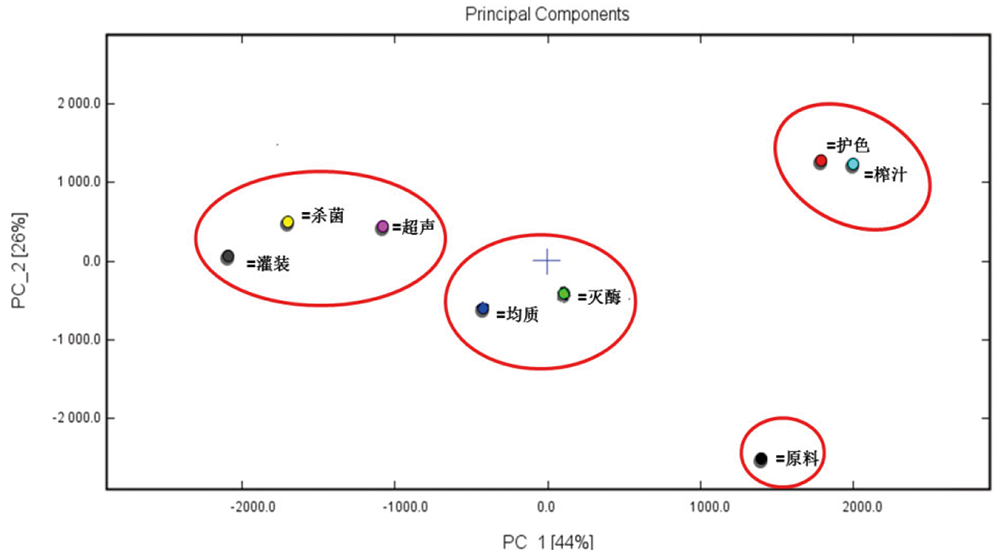

Fig.10 PCA results for apple juice in different processing steps

References 25

[1]	田由. 不同苹果品种及加工关键参数对非浓缩还原苹果汁品质的影响[D]. 西安: 陕西师范大学, 2018.
	TIAN You. Effects of Different Aplle Cultivars and Processing Key Parameters on the Quality of Not From Concentrate Apple Juices[D]. Xi'an: Shaanxi Normal University, 2018.
[2]	潘俨. 库尔勒香梨果实发育及采后糖代谢与呼吸代谢关系的研究[D]. 乌鲁木齐: 新疆农业大学, 2016.
	PAN Yan. Fruit development of Korla fragrant pear and the relationship between postharvest sugar metabolism and respiration metabolism[D]. Urumqi: Xinjiang Agricultural University, 2016.
[3]	梁亚男, 叶发银, 雷琳, 等. 苹果汁褐变控制技术研究进展[J]. 食品与发酵工业, 2018, 44(3): 286-292.
	LIANG Yanan, Ye Fayin, LEI Lin, et al. Research progress of apple juice browning control technology[J]. Food and Fermentation Industries, 2018, 44(3): 286-292.
[4]	Gottfried K, Mathias K, Gössinger M, et al. Effect of thermal treatment on the quality of cloudy apple juice[J]. Journal of Agricultural and Food Chemistry, 2006, 54(15): 5453-5460. DOI URL
[5]	Benitez E I, Lozano J E. Effect of gelatin on apple juice turbidity[J]. Latin American Applied Research, 2007, 37(4): 261-266.
[6]	Santhirasegaram V, Razali Z, George D S, et al. Comparison of UV-C treatmentand thermal pasteurization on quality of Chokanan mango (Mangifera indica L.)juice[J]. Food and Bioproducts Processing, 2015, (94): 313-321.
[7]	Silva V M, Sato A C K, Barbosa G, et al. The effect of homogenisation on the stability of pineapple pulp[J]. International Journal of Food Science&Technology, 2010, 45(10): 2127-2133.
[8]	魏康丽, 刘畅, 丁海臻, 等. 苹果果肉可溶性固形物可溶性糖与光学性质的关联研究[J]. 食品科学, 2019, 40(18): 9-15.
	WEI Kangli, LIU Chang, DING Haizhen, et al. Study on the relationship between soluble sugar and optical properties of soluble solids in apple pulp[J]. Food Science, 2019, 40(18): 9-15.
[9]	师源, 何强, 李莹, 等. 高效液相色谱法测定浓缩果汁中5种可溶性糖[J]. 化学分析计量, 2019, 28(1): 97-100.
	SHI Yuan, HE Qiang, LI Ying, et al. Determination of 5 soluble sugars in concentrated fruit juice by high performance liquid chromatography[J]. Chemical Analysis And Meterage, 2019, 28(1): 97-100.
[10]	郑丽静. 苹果果实糖酸特性及其与风味关系研究[D]. 北京: 中国农业科学院, 2015.
	ZHENG Lijing. Sugar and acid characteristics of apple fruit and its relationship with flavor[D]. Beijing: Chinese Academy of Agricultural Sciences, 2015.
[11]	郭燕, 梁俊, 李敏敏, 等. 高效液相色谱法测定苹果果实中的有机酸[J]. 食品科学, 2012, 33(2): 234-237.
	GUO Yan, LIANG Jun, LI Minmin, et al. Determination of organic acids in apple fruits by high performance liquid chromatography[J]. Food Science, 2012, 33(2): 234-237.
[12]	饶静, 李春扬, 张晓磊, 等. 高效液相色谱法同时测定苹果醋及原料中的17种有机酸[J]. 中国酿造, 2018, 37(4): 174-178.
	RAO Jing, LI Chunyang, ZHANG Xiaolei, et al. Simultaneous determination of 17 organic acids in apple cider vinegar and raw materials by high performance liquid chromatography[J]. China Brewing, 2018, 37(4): 174-178.
[13]	谢季云, 赵晓敏, 汪永琴, 等. 1-MCP处理对不同期采收的阿克苏红富士苹果在采后贮藏期糖代谢的影响[J]. 现代食品科技, 2018, 34(9): 111-121, 214.
	XIE Jiyun, ZHAO Xiaomin, WANG Yongqin, et al. Effects of 1-MCP treatment on sugar metabolism of Aksu Red Fuji apples harvested at different stages during postharvest storage[J]. Modern Food Science and Technology, 2018, 34(9): 111-121, 214.
[14]	Caminiti I M, Noci F, Munoz A, et al. Impact of selected combinations of non-thermal processing technologies on the quality of an apple and cranberry juice blend[J]. Food Chemistry, 2010, 124(4): 1387-1392. DOI URL
[15]	张波, 韩舜愈, 蒋玉梅, 等. 杏果挥发性风味成分分析[J]. 食品科学, 2008, 29(12): 559-563.
	ZHANG Bo, HAN Shunyu, JIANG Yumei, et al. Analysis of Volatile Flavor Components of Apricot Fruit[J]. Food Science, 2008, 29(12): 559-563.
[16]	Philip E S, Manuel G M. Quantification of volatile constituents inorange juice drinks and its use for comparison with pure juices by multivariate analysis[J]. Lebensm Wissu Technol, 1997, 5(30): 497-501.
[17]	Forney C F, Jordan M A, Cue K R. Identification of aroma-active compounds of whole and macerated 'Honeyc-risp' and 'Ambrosia' apples[J]. Acta Horticulturae, 2016, 20(1120): 137-142.
[18]	石金瑞, 刘潇然, 刘翠华, 等. ‘瑞阳’及其亲本‘秦冠’和‘富士’苹果香气物质的比较[J]. 西北农业学报, 2018, 27(7): 977-987.
	SHI Jinrui, LIU Xiaoran, LIU Cuihua, et al. Comparison of aroma substances in "Ruiyang" and its parents "Qin Guan" and "Fuji" apple[J]. Northwest Agricultural Journal, 2018, 27(7): 977-987.
[19]	万鹏, 梁国平, 马丽娟, 等. 19个苹果品种果实香气成分的GC-MS分析[J]. 食品工业科技, 2019, 40(14): 227-232.
	WAN Peng, LIANG Guoping, MA Lijuan, et al. GC-MS analysis of fruit aroma components of 19 apple varieties[J]. Science and Technology of Food Industry, 2019, 40(14): 227-232.
[20]	吴昕烨, 刘璇, 毕金峰, 等. 两种苹果(等外果)汁贮藏期间挥发性成分变化[J]. 食品与发酵工业, 2019, 45(10): 208-215.
	WU Xinye, LIU Xuan, BI Jinfeng, et al. Changes of volatile components of two kinds of apple juices during storage[J]. Food and Fermentation Industries, 2019, 45(10): 208-215.
[21]	李亚会, 龚霄, 任芳, 等. 基于气相离子迁移谱分析不同贮藏条件下番荔枝的风味变化[J]. 食品工业科技, 2019, 40(18): 263-266, 272.
	LI Yahui, GONG Xiao, REN Fang, et al. Based on gas phase ion mobility spectroscopy to analyze the flavor changes of sugar apples under different storage conditions[J]. Science and Technology of Food Industry, 2019, 40(18): 263-266, 272.
[22]	刘俊灵. 苹果新品种“瑞雪”果实挥发性香气物质分析及其遗传特性初探[D]. 杨凌: 西北农林科技大学, 2019.
	LIU Junling. Analysis of Volatile Aroma Substances of New Apple Variety "Ruixue" Fruits and Preliminary Study on Their Genetic Characteristics[D]. Yangling: Northwest A&F University, 2019.
[23]	代蕾, 孙翠霞, 刘夫国, 等. 高压均质对果蔬汁品质影响研究进展[J]. 食品工业科技, 2016, 37(12): 389-393.
	DAI Lei, SUN Cuixia, LIU Fuguo, et al. Research progress on the effect of high pressure homogenization on the quality of fruit and vegetable juice[J]. Food Industry Science and Technology, 2016, 37(12): 389-393.
[24]	王丽娜, 马荣山, 孙志健, 等. 均质工艺对苹果浊汁品质的影响[J]. 食品工业科技, 2006, 19(4): 74-76.
	WANG Lina, MA Rongshan, SUN Zhijian, et al. The effect of homogenization process on the quality of cloudy apple juice[J]. Science and Technology of Food Industry, 2006, 19(4): 74-76.
[25]	李敏. 浓缩苹果汁加工工艺对芳香物质的影响及工艺优化研究[D]. 杨凌: 西北农林科技大学, 2011.
	LI Min. Study on the influence of concentrated apple juice processing technology on aromatic substances and process optimization[D]. Yangling: Northwest A&F University, 2011.
