新疆达坂城盐湖嗜盐细菌分离鉴定及活性分析
Isolation, identification and activity of halophilic bacteria from Dabancheng Salt Lake, Xinjiang
通讯作者: 包晓玮(1969-),女,浙江松阳人,副教授,博士,研究方向为食品营养与安全,(E-mail)408531623@qq.com;宋素琴(1976-),女,山西长治人,副研究员,研究方向为微生物活性产物及作物病害,(E-mail)suqin_song@163.com
收稿日期: 2022-10-7
| 基金资助: |
|
Corresponding authors: BAO Xiaowei(1969-),female,Zhejian somgyang county, associate professor, major in food nutrition and safety,(E-mail)408531623@qq.com;SONG suqin(1976-),female,Shanxi changzhi county, associate researcher, major in microbial active products and crop diseases,(E-mail)suqin_song@163.com
Received: 2022-10-7
| Fund supported: |
|
作者简介 About authors
李怡歆(1997-),女,新疆伊犁人,硕士研究生,研究方向为放线菌活性,(E-mail)2463514716@qq.com
【目的】研究新疆盐湖嗜盐微生物资源及发掘菌株发酵液的农用和医药活性。【方法】采集达坂城区达坂城盐湖湖边的淤泥样品进行菌株分离鉴定,采用4种不同分离培养基,使用平板稀释涂布法结合16S rRNA进行分离鉴定;并用平板对峙法对分离到的放线菌进行植物病原菌拮抗活性研究,用HepG2细胞增殖测定其抑制肿瘤活性。【结果】获得细菌18株,鉴定为14个属,其中芽孢杆菌属(Bacillus)、链霉菌属(Streptomyces)、拟诺卡氏菌属(Nocardiopsis)为优势种群。有3株放线菌具有拮抗植物病原菌活性,其中菌株Tsukamurella sinensis DBC26和Nocardiopsis crassaminis DBC31有拮抗棉花枯萎菌活性, Streptomyces longispororuberDBC5有拮抗水稻恶苗菌活性。菌株DBC5、DBC9和DBC10对HepG2细胞增殖的抑制率分别为96.4%、91.8%和87.8%。【结论】达坂城盐湖细菌在数量和种类上存在丰富的多样性,且稀有放线菌种类较为丰富,并且其发酵液具有拮抗植物病原菌活性和抑制肿瘤细胞增殖活性。
关键词:
【Objective】 To study the resources of halophilic microorganisms in Salt Lake of Xinjiang and explore the agricultural and medical activities of the fermentation broth of the strain.【Methods】 In this study, the sludge samples from Dabancheng Salt Lake in Daban City were collected for isolation and identification of bacterial strains.Four different separation media were used for isolation and identification by plate dilution coating method combined with 16S rRNA.The antagonistic activity of the isolated actinomycetes was studied by flat-plate antagonistic method, and the anticancer activity of the isolated actinomycetes was determined by HepG2 cell proliferation.【Results】 Eighteen strains of bacteria were obtained and identified as 14 genera, among which Bacillus, Streptomyces and Nocardiopsis were the dominant species.Three actinomycetes showed antagonistic activity against plant pathogens, among which strains Tsukamurella sinensis DBC26 and Nocardiopsis crassaminis DBC31 showed antagonistic activity against fusarium oxysporum. Streptomyces longispororuber DBC5 showed antagonistic activity against rice vaccinia.The anti-tumor activity of DBC5, DBC9 and DBC10 strains against HepG2 cell proliferation was 96.4%, 91.8% and 87.8%, respectively.【Conclusion】 This study showed that the number and species of bacteria in Dabancheng Salt Lake are rich in diversity, and rare actinomycetes are rich in species, and their fermentation broth has the activity of antagonizing plant pathogens and inhibiting tumor cell proliferation.
Keywords:
本文引用格式
李怡歆, 陈勇, 刘晓禄, 艾尼江·尔斯满, 徐李娟, 刘倩倩, 包晓玮, 宋素琴.
LI Yixin, CHEN Yong, LIU Xiaolu, Ainijiang Ersiman, XU Lijuan, LIU Qianqian, BAO Xiaowei, SONG Suqin.
0 引言
【研究意义】极端环境包括高压、高碱、高酸、高温、高盐和高辐射等[1]。极端环境的微生物因其生存的极端环境决定其生长繁殖以及代谢路径等[2]。且代谢产物能抵抗外界对自身的伤害[3]。盐湖因蕴含丰富的氯化钠,是一种咸水化水体。新疆是我国内陆盐类主要产地之一,例如罗布泊盐湖、艾比盐湖、巴里坤盐湖、达坂城盐湖和乌尔禾盐湖等。【前人研究进展】从达坂城盐湖分离到的微生物大多属于Firmicutes和γ-proteobacteria两大类群,包括盐单胞菌属(Halomonas)、枝芽孢杆菌属(Virgibacillus)、芽孢杆菌属(Bacillus)、喜盐芽孢杆菌属 (Halobacillus)、盐水球菌属 (Salinicoccus)、Ornithinibacillus、Oceanobacillus、Thalassobacillus 和 Salimicrobium[4];以及中度嗜盐菌Moderately halophilicbacteria[5]、嗜盐古菌Natrialba、Haloarcula、Haloterrigena、Halorubrum等[6]。【本研究切入点】从普通环境例如土壤及植物体内分离出的活性菌株及其活性代谢产物的种类具有极高的重复率。目前,对新疆达坂城盐湖嗜盐细菌的研究较少,需要进一步挖掘达坂城盐湖的嗜盐菌资源。【拟解决的关键问题】采集达坂城盐湖湖边淤泥,选用不同的分离培养基对其进行嗜盐细菌的分离培养,根据形态进行分离,结合16S rRNA 基因序列,对部分放线菌开展活性研究,为研究新疆达坂盐湖地区嗜盐细菌物种基因资源的多样性提供理论依据。
1 材料与方法
1.1 材料
1.1.1 样品
于新疆达坂城盐湖(88°03'53″~88°12'15″E, 43°21'00″~43°25'25″N),湖水边缘,用采集器采集15~20 cm深处的淤泥样品,分装于无菌密封袋,置于4℃冰箱保存。
1.1.2 培养基
M-2(海藻糖-脯氨酸)培养基:Trehalose 6g,Proline 1 g,KNO3 0.5 g,Na2HPO4 0.3 g,MgSO4·7H2O 0.2 g,CaCl2 0.5 g,agar15 g,H2O 1 L,pH 7.2
MM琼脂培养基[7]:glucose 0.5 g, yeast extract 0.5 g,K2HPO4 0.3 g,NaCl 0.5 g,MgSO4 ·7H2O 1 g,FeSO4·7H2O 0.01 g,CaCO3 0.1 g,MnCl·4H2O 0.02 g,ZnSO4 0.07 g,agar 15 g,H2O 1 L,pH 7.2。
M-7(甘油-天门冬酰胺)培养基:Glycerol 10.0 g,Asparagine 1 g,K2HPO4 1 g,微量盐1 ml,agar 15 g,H2O 1 L,pH 7.2。
M-1(TWYE):Yeast 0.25 g, K2HPO4 0.5 g,agar 15 g,H2O 1 L,pH 7.2。
每种培养基灭菌前均添加终浓度为25 mg/L的萘啶酮酸和50 mg/L的制霉菌素。
拮抗植物病原菌采用PDA培养基。
1.1.3 主要试剂
NaOH、NaCl、MgSO4 、MnCl2等均为化学纯。
1.1.4 植物病原菌
西瓜枯萎(尖孢镰刀菌Fusarium oxysporum)、水稻恶苗(串珠镰孢菌Fusarium moliniforme)、棉花枯萎(尖孢镰刀菌Fusarium oxysporum)、核桃腐烂病(壳囊孢Cycospora sp.)、苹果树腐烂病(壳囊孢Valsa mali var.mali)。以上病原菌由中国农业大学种子健康中心提供。
肿瘤细胞:肿瘤细胞采用人肝癌细胞HepG2,由浙江大学海洋学院提供。
1.2 方法
1.2.1 菌株的分离和纯化
1.2.2 相关模式菌株
构建系统进化树外源菌:Bacillus subtilis (AS1.1849)。
1.2.3 16S rRNA序列的测定
1.2.3.1 细菌总DNA的提取
在灭菌的2 mL/1.5mL的离心管中加入20 μL 无菌水,用枪头挑取适量菌体,混匀并标记。100℃沸水浴沸腾5 min,放入-20℃冷冻5 min,此步骤重复2次,28℃,5 000 r/min,离心3 min。
1.2.3.2 16S rRNA序列的PCR扩增
采用细菌通用引物27F(AGAGTTTGATCCTGGCTCAG-3`)和1492R(5’-GGTTACCTTGTTACGACTT-3`)扩增菌株16S rRNA 序列。PCR扩增程序:95℃预变性5 min,主循环(94℃,30 s;54℃,30 s;72℃,30 s),循环30次,终延伸72℃,7 min,4℃保存。扩增中利用水代替 DNA 模板作为空白对照。PCR扩增产物采用1% 琼脂糖凝胶电泳检测,阳性产物送至北京鼎国昌盛生物技术责任股份有限公司进行纯化测序,测序结果与 GenBank 的序列进行BLAST比对。
1.2.4 基于16S rRNA 的系统发育学
用MEGA 7.0的 Neighbor-Joining 法构建16S rRNA 相似序列系统发育进化树的构建。
1.2.5 菌株发酵液以及粗提物的制备
在超净工作台内,用10 μL的枪头挑取放线菌菌落,转接于甘油-天门冬酰胺液体培养基,30℃,180 r/min,恒温震荡培养5~7 d。待发酵完成后,用乙酸乙酯等体积混合震荡萃取发酵液3次,回收浓缩得发酵液粗提物。
1.2.6 拮抗菌株筛选
1.2.6.1 抗菌活性
采用平板对峙法测定所分离到的放线菌对植物病原菌的抑菌效果。在超净台内,用5 mm打孔器将PDA平板打孔,每个平板打四个孔,打孔位置距离培养皿中心距离相等,用灭菌竹签挑取植物病原菌的新鲜孢子接于平板中心,再用枪头吸取100 μL离心后的菌株发酵液上清液,注入孔内,以不接发酵液的平板为对照,28℃培养, 5~7 d后观察记录有无抑菌圈产生。
1.2.6.2 抗肿瘤活性筛选
选用人源细胞株HepG2(人肝癌细胞株)为检测对象,采用磺酰罗丹明B(SRB)方法[10]检测菌株发酵液粗提物对HepG2细胞增殖的抑制作用,菌株粗提物用DMSO配成10 mg/ml得浓度。
收集对数生长期HepG2细胞并以8×103细胞/孔的密度种于96孔板内,过夜培养后加药,以阿霉素为阳性药,设置3个重复,继续培养。72 h后取出96孔板,弃去培养基后每孔加入100 μL 10%的三氯乙酸水溶液,4℃冰箱中固定至少2 h。然后取出96孔板,弃去三氯乙酸溶液,并用缓慢流动的水冲洗至少4遍并烘干,再加入80 μL 1%醋酸配制的0.4% SRB溶液染色20 min,期间配置1%醋酸水溶液,染色结束后用1%醋酸水溶液冲洗4遍以去除未结合的染料,再次烘干至完全干燥后每孔加入100 μL 10 mM Tris溶液,并震荡使与蛋白结合的染料完全溶解,再置于酶标仪中于515 nm处检测吸光度。
抑制率=(对照组OD值-给药组OD值)/对照组OD值×100%。
2 结果与分析
2.1 达坂城盐湖嗜盐细菌的分离鉴定
表1 不同培养基分离到的嗜盐细菌种属
Tab.1
| 培养基 Culture medium | 嗜盐细菌属 Halophilic bacteria | 嗜盐细菌种 Halophilic bacterial species |
|---|---|---|
| M-2(海藻糖-脯氨酸) | 类芽孢杆菌属(Paenibacillus) | Paenibacillus peoriae |
| MM琼脂 | 代谢杆菌(Metabacillus) | Metabacillus sediminilitoris |
| M-7(甘油-天门冬酰胺) | 类诺卡氏菌属(Nocardioides) 动性球菌属(Planococcus) 冢村氏菌属(Tsukamurella) 短杆菌属(Brevibacterium) 假黄色单胞菌属(Pseudoxanthomonas) 链霉菌属(Streptomyces) 红球菌属(Rhodococcus) 小单胞菌属(Micromonospora) 芽孢杆菌属(Bacillus) 细杆菌属(Microbacterium paraoxydans) 微球菌属(Micrococcus) 拟诺卡氏菌属(Nocardiopsis) | Nocardioides furvisabuli、Nocardioides LTZG-s、Tsukamurella conjunctivitidis、Brevibacterium epidermidis、Pseudoxanthomonas japonensis、Streptomyces longispororuber、Rhodococcus qingshengii、Micromonospora oryzae、Bacillus paramycoides、Microbacterium paraoxydans、Micrococcus antarcticus、Tsukamurella_sinensis、Nocardiopsis dassonvillei |
| M-1(TWYE) | 链霉菌属(Streptomyces) | Streptomyces pratensis |
图1
图1
新疆达坂城盐湖部分嗜盐细菌
注:a:菌株DBC23;b:菌株DBC30;c:菌株DBC31;d:菌株DBC5;e:菌株DBC9;f:菌株DBC10
Fig.1
Part of halophilic bacteria in Dabancheng Salt Lake, Xinjiang
Note:a:Strain DBC23; b:Strain DBC30; c:Strain DBC31; d:Strain DBC5; e:Strain DBC9; f:Strain DBC10
18株有效菌分属于14个属:Bacillus(2株)、Pseudoxanthomonas(1株)、Rhodococcus(1株)、Micromonospora(1株)、Streptomyces(2株)、Brevibacterium(1株)、Tsukamurella(2株)、Planococcus(1株)、Nocardiodes(1株)、Metabacillus(1株)、Paenibacillus(1株)、Microbacterium(1株)、Micrococcus(1株)、Nocardiopsis(2株)。其中放线菌12株,稀有放线菌10株,均来自37℃下的M-7培养基,M-7(甘油-天门冬酰胺)培养基可以分离达坂城盐湖的放线菌。表2
表2 分离菌株与已知菌株 16S rRNA 序列相似度
Tab.2
| 序列号 NO. | 菌株编号 NO. | 最近相似菌株名称 The name of most similarity bacteria | 相似度 Similarity | 收藏号 Accession NO. |
|---|---|---|---|---|
| 1 | DBC1 | Bacillus mobilis | 99.51% | MACF01000036 |
| 2 | DBC2 | Pseudoxanthomonas japonensis | 99.14% | AB008507 |
| 3 | DBC3 | Micromonospora oryzae | 99.35% | AB981052 |
| 4 | DBC4 | Rhodococcus qingshengii | 99.64% | LRRJ01000016 |
| 5 | DBC5 | Streptomyces longispororuber | 99.71% | AB184440 |
| 6 | DBC7 | Brevibacterium epidermidis | 99.60% | BCSJ01000023 |
| 7 | DBC9 | Tsukamurella conjunctivitidis | 99.71% | MK583684 |
| 8 | DBC25 | LTZG_s | 99.10% | LTZG01000007 |
| 9 | DBC23 | Nocardioides alpinus | 97.43% | GU784866 |
| 10 | DBC10 | Streptomyces pratensis | 99.85% | JQ806215 |
| 11 | DBC12 | Metabacillus sediminilitoris | 98.20% | MN067806 |
| 12 | DBC13 | MRTF_s | 98.90% | MRTF01000019 |
| 13 | DBC18 | Bacillus paramycoides | 95.93% | MAOI01000012 |
| 14 | DBC22 | Microbacterium paraoxydans | 99.22% | BCRH01000180 |
| 15 | DBC24 | Micrococcus antarcticus | 98.93% | AJ005932 |
| 16 | DBC26 | Tsukamurella sinensis | 99.64% | KP888571 |
| 17 | DBC30 | Nocardiopsis dassonvillei | 100% | ABUI01000017 |
| 18 | DBC31 | Nocardiopsis crassaminis | 99.82% | LR606207 |
2.2 菌株的系统发育学
图2
图2

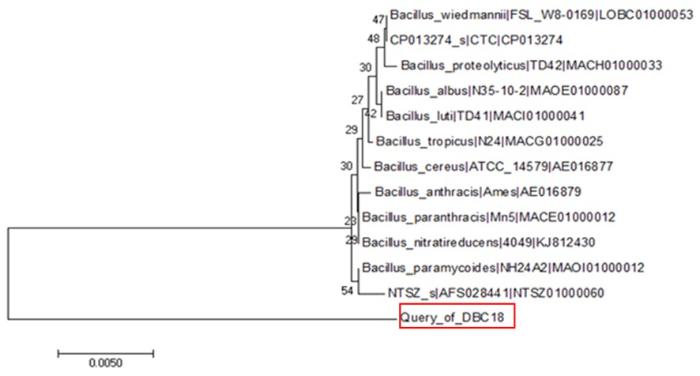

菌株18基于 16S rRNA 序列系统发育树
Fig.2
Strain is based on 16S rRNA sequence phylogenetic tree
图3
图3

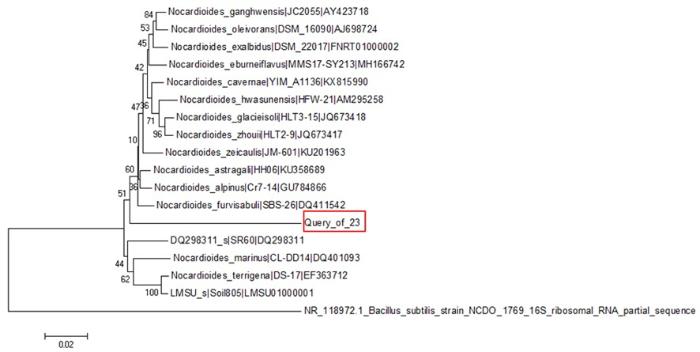

菌株23基于 16S rRNA 序列系统发育树
Fig.3
Strain 23 is based on 16S rRNA sequence phylogenetic tree
2.3 放线菌发酵液的抗菌活性
研究表明,DBC26、DBC31和DBC5对病原菌具有潜在的抗菌活性,其中DBC26和DBC31有拮抗棉花枯萎病菌活性,为Tsukamurella sinensis和Nocardiopsis crassaminis,DBC5有抗水稻恶苗病菌活性,是Streptomyces longispororuber。表3
表3 达坂城盐湖嗜盐放线菌抗菌活性
Tab.3
| 植物病原菌Plant pathogen | |||||
|---|---|---|---|---|---|
| 嗜盐放线菌 Halophilic actinomycetes | 南瓜枯萎病菌 F.oxysporum | 水稻恶苗病菌 F.moliniforme | 棉花枯萎病菌 F.oxysporum | 核桃腐烂病菌 Cytcospora sp. | 苹果树腐烂病菌 Valsa mali var.mali |
| DBC5 | — | + | — | — | — |
| DBC23 | — | — | — | — | — |
| DBC10 | — | — | — | — | — |
| DBC26 | — | — | + | — | — |
| DBC30 | — | — | — | — | — |
| DBC31 | — | — | + | — | — |
注:“+”表示有潜在的抑菌活性;“—”表示没有抑菌活性
Note:"+" indicates potential antibacterial activity; "-" indicates no antibacterial activity
2.4 放线菌粗提物抗肿瘤活性
研究表明,菌株DBC5对HepG2细胞增殖的抑制率最高,达到了96.4%;其次是菌株DBC9,抑制率为91.8%;菌株DBC10和菌株DBC26的抑制率分别为87.8%和83.2%;菌株DBC24的抑制活性较弱,抑制率仅为16.7%,而菌株DBC3对HepG2细胞增殖没有抑制率。表4
表4 盐湖放线菌发酵液粗提物对HepG2细胞的抑制作用
Tab.4
| 菌株编号 Strain No. | 抑制率 Inhibition rate |
|---|---|
| DBC5 | 96.4% |
| DBC10 | 87.8% |
| DBC9 | 91.8% |
| DBC3 | NA |
| DBC26 | 83.2% |
| DBC24 | 16.7% |
注:NA表示没有抑制作用
3 讨论
3.1 研究共获得14个属18株嗜盐细菌,其中芽孢杆菌属(Bacillus)、诺卡氏菌属(Nocardiopsis)和链霉菌属(Streptomyces)为优势菌属,且放线菌大多为稀有放线菌。其中 M-7培养基(甘油-天门冬酰胺) 共分离到 11个属 13个不同种的嗜盐细菌,分离效果好于其他3种培养基, 认为M-7 (甘油-天门冬酰胺)培养基分离盐湖可以得到较多种类的嗜盐细菌。可能是因为甘油碳源,能适当的调节培养基渗透压;而L-天门冬酰胺可能是盐湖微生物赖以生存的一种有机酸,满足了高盐环境嗜盐细菌的生理和特殊的营养需求。用M-7(甘油-天门冬酰胺)培养基分离死海嗜盐放线菌[11]。
3.2 极端环境生长的放线菌所需的营养条件不同于普通环境的放线菌,盐湖环境除了高盐的特性,还存在着丰富的化学离子,如Na+、K+、Mg2+、
3.3 菌株DBC23和菌株DBC18的16S rRNA序列与已知的菌株 16S rRNA序列相似度分别在97.43%和95.53%,为潜在新种,需要进一步研究。抑菌实验中筛选到3株具有拮抗活性的放线菌,进行了初步的拮抗活性筛选,其中具有拮抗活性的放线菌3株,属于链霉菌属(Streptomyces)、拟诺卡氏菌属(Nocardiopsis)冢村氏菌属(Tsukamurella)。而关于冢村氏菌的活性报道较少,放线菌(DBC26)值得进一步研究。
4 结论
从新疆达坂城盐湖湖边15-20cm深的淤泥样品中分离出了18株菌,鉴定为14个属,是Bacillus(2株)、Pseudoxanthomonas(1株)、Rhodococcus(1株)、Micromonospora(1株)、Streptomyces(2株)、Brevibacterium(1株)、Tsukamurella(2株)、Planococcus(1株)、Nocardiodes(1株)、Metabacillus(1株)、Paenibacillus(1株)、Microbacterium(1株)、Micrococcus(1株)、Nocardiopsis(2株)。其中冢村氏菌(Tsukamurella)是从达坂城盐湖中分离出。对放线菌进行了抗植物病原菌测试,其中DBC5、DBC26和DBC31分别对水稻恶苗和棉花枯萎具有初步的抑制效果,DBC5、DBC9的细胞增殖抑制率均在90%以上。
